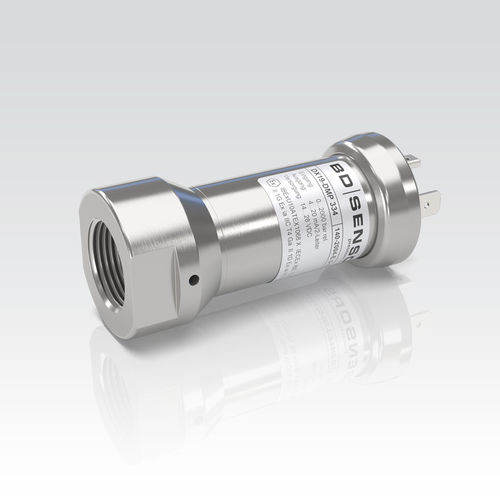

Relative pressure transmitter DMP 334
membraneanalogthreaded

relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Technology
membrane
Output
analog
Mounting
threaded
Material
stainless steel
Pressure range

Max.: 2,200 bar
(31,908.3 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 140 °C
(284 °F)

Min.: -40 °C
(-40 °F)

Description

The industrial pressure transmitter DMP 334 has been especially designed for use in hydraulic systems up to 2200 bar. The base element of DMP 334 is a thinfilm sensor, that is welded with the pressure port and meets high demands of foolproofness and reliability. All of characteristics and the excellent mesurement data of DMP 334 as well as distinguished offset stability offer a pressure transmiter with easy handling, reliability and robustness for hydraulic user. The DMP 334 is deliverable with pressure ports of extrem pressure technics. Features: - nominal pressure: 0 ... 600 bar up to 0 ... 2.200 bar - accuracy: 0.35 % FSO - pressure sensor welded - extremly robust and excellent longterm stability Optional Features: - IS-Version Ex ia = intrinsically safe for gases and dusts - pressure port M20 x 1.5 oder 9/16 UNF - adjustability of span and offset - different kinds of electrical connections
