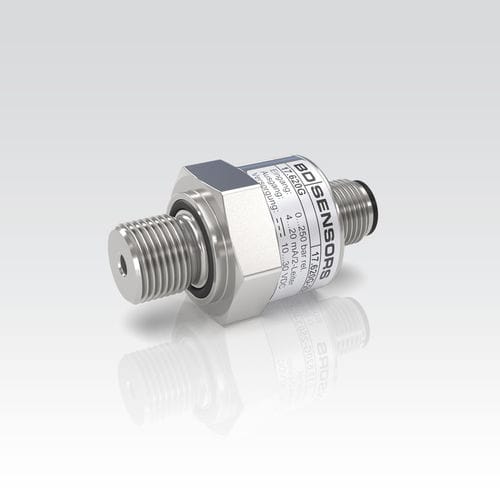

Relative pressure transmitter 17.620G
4-20 mAratiometricthreaded

relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Output
4-20 mA, ratiometric
Mounting
threaded
Fluid
for gas, for liquids
Material
stainless steel
Protection level
EMC
Other characteristics
programmable, CE, two-wire, OEM, custom, miniature, fast response time, RoHS, fully-welded, with selectable measurement range, multifunction, high-overpressure
Pressure range

Max.: 1,000 bar
(14,503.77 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 125 °C
(257 °F)

Min.: -20 °C
(-4 °F)

Description

Compact OEM Pressure Transmitter Heavy Duty Applications: ► mobile hydraulic, presses ► general mechanical engineering Characteristics: ► stainless steel sensor, welded ► accuracy according to IEC 60770: 0.5 % FSO ► nominal pressure ranges from 0 … 16 bar up to 0 … 600 bar
