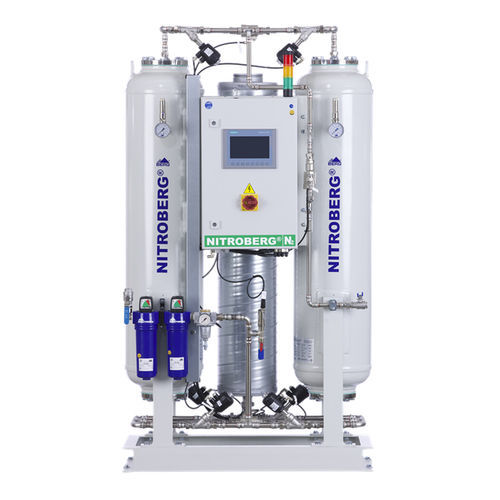

High-purity nitrogen generator NITROBERG® 500

laboratoryindustrialon site

Product information
NITROBERG® 500 nitrogen generator 2.2 Nm3/h (99.99%)

Capacity / Nitrogen content
Nitrogen content: 97% | 98% | 99% | 99.5% | 99.9% | 99.99% | 99.995% | 99.999%
Capacity (Nm3/h): 10.7 | 8.6 | 7.1 | 6.2 | 4.1 | 2.2 | 1.7 | 1.2
Compressed air factor: 2.3 | 2.3 | 2.6 | 2.9 | 3.4 | 4.6 | 5.2 | 6.4
Compressed air (Nm3/h): 24.6 | 19.8 | 18.5 | 18.0 | 13.9 | 10.1 | 8.8 | 7.7
Compressed air (m3/h)*: 26.4 | 21.2 | 19.8 | 19.3 | 15.0 | 10.9 | 9.5 | 8.2
Product vessel (l): 90 (all variants)
Compressed air vessel (l): 90 (all variants)

Overview
NITROBERG® nitrogen generators deliver on-site production of high-purity nitrogen for laboratories and industrial applications. They provide continuous supply with low operating requirements and straightforward maintenance.

Availability
Available, delivery time: Approximately 4–5 weeks

Specifications / Technical data

• Model: NITROBERG® 500
• Part No.: 1020200500
• Capacity (at 99.99% N2): 2.2 Nm3/h
• Available purity range: 97% to 99.999% (see capacity data)
• Dimensions (L x W x H): 610 x 870 x 1730 mm
• Max. pressure: 11 bar
• Operating pressure: 8 bar
• Net weight: 160 kg
• Noise level: 55 up to max. 85 dB(A)
• Ambient temperature: +5 to +40 °C
• Electrical connection: 230 V 50 Hz or 110 V 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Inlet filtration (fine): 0.01 micron (optional)
• Inlet filtration (activated carbon): 0.003 micron (optional)
• Outlet filtration: 3 to 5 micron (optional)
• Reference temperature*: 20 °C
• Reference altitude*: 0 m
• Reference pressure*: 1.0133 bar
• Reference humidity*: 70%
