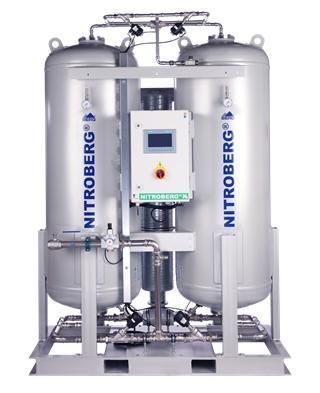

Ultra high-purity nitrogen generator NITROBERG® 4000

high-purityUHPhigh-concentration

Product
Nitrogen generator NITROBERG® 4000. Example capacity: 351.4 Nm3/h at 99.99% N2. The NITROBERG® 4000 is an on‑site PSA nitrogen generation system designed for continuous industrial supply with selectable purities and integrated air treatment options.

Capacity (Nm3/h)
Nitrogen content | 97% | 98% | 99% | 99.5% | 99.9% | 99.99% | 99.995% | 99.999%
Capacity Nm3/h | 1,709.1 | 1,373.6 | 1,134.0 | 990.3 | 654.9 | 351.4 | 271.5 | 191.7
Compressed air factor | 2.3 | 2.3 | 2.6 | 2.9 | 3.4 | 4.6 | 5.2 | 6.4
Compressed air Nm3/h | 3,930.8 | 3,159.4 | 2,948.5 | 2,871.9 | 2,226.6 | 1,616.4 | 1,412.0 | 1,226.7
Compressed air m3/h * | 4,217.8 | 3,390.0 | 3,163.8 | 3,081.5 | 2,389.1 | 1,734.4 | 1,515.0 | 1,316.2
Product vessel (l) | 6,000 | 6,000 | 6,000 | 6,000 | 4,000 | 4,000 | 4,000 | 4,000
Compressed air vessel (l) | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000

Technical data (summary)
Part No.: 1020204000
Dimensions (LxWxH mm): 3600 x 2250 x 2950
Max. pressure: 11 bar
Operating pressure: 8 bar
Net weight: 13,440 kg
Noise level: 55 max 85 dB(A)
Ambient temperature: +5 to +40 °C
Electrical connection: 230V 50Hz / 110V 60Hz
Power consumption: 150 W
Protection class: IP54
Inlet filtration: 0.01 micron
Inlet filtration (active carbon) (optional): 0.003 micron
Outlet filtration (optional): 3–5 micron
Reference conditions: Temperature 20 °C; Altitude 0 m; Pressure 1.0133 bar; Humidity 70%
* Consult us for performance under other specific conditions. ** Optional

Specifications

• Model: NITROBERG® 4000
• Part number: 1020204000
• Example capacity: 351.4 Nm3/h at 99.99% N2
• Compressed air requirements shown in the capacity table
• Product vessel: up to 6,000 L (varies by purity/configuration)
• Compressed air vessel: up to 10,000 L (varies by purity/configuration)
• Max. operating pressure: 11 bar; nominal 8 bar
• Net weight: 13,440 kg
• Electrical: 230 V 50 Hz or 110 V 60 Hz
• Auxiliary power consumption: 150 W
• Noise level: from 55 up to max. 85 dB(A)
• Filtration: inlet 0.01 µm (optional active carbon 0.003 µm); outlet 3–5 µm (optional)
• Operating ambient: +5 to +40 °C; consult for other site conditions
