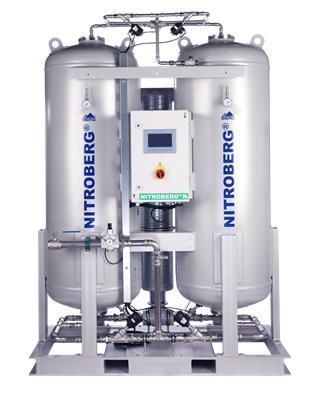

Ultra high-purity nitrogen generator NITROBERG® 1700

inertpurehigh-purity

Product overview
NITROBERG® 1700 PSA nitrogen generator — nominal capacity 119.1 Nm3/h at 99.99% N2. Designed for continuous on-site nitrogen supply to industrial processes where adjustable purity and reliable flow are required.

Performance
Nitrogen content | 97% | 98% | 99% | 99.5% | 99.9% | 99.99% | 99.995% | 99.999%
Capacity (Nm3/h) | 579.3 | 465.6 | 384.4 | 335.7 | 222.0 | 119.1 | 92.0 | 65.0
Compressed air factor | 2.3 | 2.3 | 2.6 | 2.9 | 3.4 | 4.6 | 5.2 | 6.4
Compressed air (Nm3/h) | 1,332.5 | 1,071.0 | 999.5 | 973.5 | 754.8 | 547.9 | 478.6 | 415.8
Compressed air (m3/h)* | 1,429.8 | 1,149.2 | 1,072.5 | 1,044.6 | 809.9 | 587.9 | 513.6 | 446.2
Product vessel (l) | 4,000 | 4,000 | 4,000 | 4,000 | 3,000 | 3,000 | 3,000 | 3,000
Compressed air vessel (l) | 6,000 | 6,000 | 6,000 | 6,000 | 4,000 | 4,000 | 4,000 | 4,000

Applications

• Manufacturing (inerting, blanketing)
• Electronics (soldering, reflow, cleanrooms)
• Food & beverage (packaging, preservation)
• Laboratories and R&D
• Oil & gas (purging, inerting)
• Pharmaceutical production

Technical specifications

• Model: NITROBERG® 1700
• Part no.: 1020201700
• Declared capacity: 119.1 Nm3/h (at 99.99% N2)
• Dimensions (L x W x H): 1200 x 2250 x 2950 mm
• Max. pressure: 11 bar
• Operating pressure: 8 bar
• Net weight: 4,550 kg
• Noise level: 55 max 85 dB(A)
• Ambient temperature: +5 to +40 °C
• Electrical: 230 V 50 Hz / 110 V 60 Hz
• Control power consumption: 150 W
• Protection class: IP54
• Inlet filtration (standard): 0.01 µm
• Inlet active carbon filter (optional): 0.003 µm
• Outlet filtration (optional): 3–5 µm

Notes
Reference data at 20 °C, 0 m above sea level, 1.0133 bar and 70% RH. Contact manufacturer for performance under different conditions and for available options.
