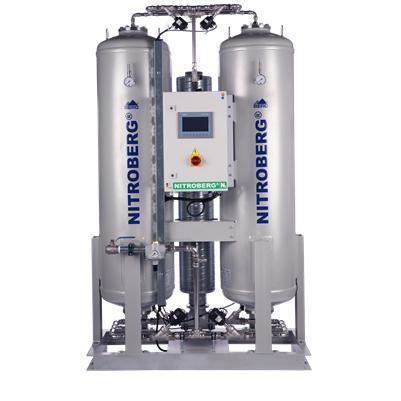

High-purity nitrogen generator NITROBERG® 1300

industrialPSApressure swing adsorption

Product information
Nitrogen Generator NITROBERG® 1300
42.2 Nm3/h (99.99%)

Capacity table
Nitrogen content | 97% | 98% | 99% | 99,5% | 99,9% | 99,99% | 99,995% | 99,999%
Capacity (Nm3/h) | 205.4 | 165.1 | 136.3 | 119.0 | 78.7 | 42.2 | 32.6 | 23.0
Compressed air factor | 2.3 | 2.3 | 2.6 | 2.9 | 3.4 | 4.6 | 5.2 | 6.4
Compressed air (Nm3/h) | 472.5 | 379.8 | 354.4 | 345.2 | 267.6 | 194.3 | 169.7 | 147.5
Compressed air (m3/h) * | 507.0 | 407.5 | 380.3 | 370.4 | 287.1 | 208.5 | 182.1 | 158.3
Product vessel (l) | 1,500 | 1,500 | 1,500 | 1,500 | 1,000 | 1,000 | 1,000 | 1,000
Compressed air vessel (l) | 2,000 | 2,000 | 2,000 | 2,000 | 1,500 | 1,500 | 1,500 | 1,500

Overview
NITROBERG® 1300 provides a reliable on-site nitrogen supply with adjustable purity levels from 97% up to 99.999%. The unit uses PSA (Pressure Swing Adsorption) technology to deliver high-purity nitrogen with consistent performance, low operating costs and flexibility for a wide range of industrial processes.

Technical data
Nitrogen Generator: NITROBERG® 1300
Part No.: 1020201300
Dimensions: 820 x 1650 x 2360 L x B x H (mm)
Max. pressure: 11 bar
Operating pressure: 8 bar
Net weight: 1,390 kg
Noise level: 55 max 85 dB (A)
Ambient temperature: +5 to +40 °C
Electrical connection: 230 V 50 Hz / 110 V 60 Hz
Power consumption: 150 W
Safety class: IP54
Inlet Filtration **: 0.01 micron
Inlet filtration ** (Active carbon filter): 0.003 micron
Outlet Filtration **: 3 to 5 micron
Temperature *: 20 °C
Above Sea Level *: 0 m
Pressure *: 1.0133 bar
Humidity *: 70%
* Consult manufacturer for performance under other specific conditions
** Optional

Features / technical specifications

• Model: NITROBERG® 1300
• Part number / SKU: 1020201300
• Capacity range (depending on purity): up to 205.4 Nm3/h (at lower purity settings); example: 42.2 Nm3/h at 99.99% N2
• Nitrogen purity range: 97% – 99.999%
• Compressed air consumption: see compressed air (Nm3/h) per purity in capacity table
• Compressed air factor: between 2.3 and 6.4 depending on required nitrogen purity
• Product vessel volume: up to 1,500 l (varies with purity configuration)
• Compressed air vessel: up to 2,000 l (varies with purity configuration)
• Maximum pressure: 11 bar; Operating pressure: 8 bar
• Dimensions (LxBxH): 820 x 1650 x 2360 mm
• Net weight: 1,390 kg
• Noise level: 55 dB (typ.), max 85 dB(A)
• Electrical connection options: 230 V 50 Hz or 110 V 60 Hz
• Power consumption: 150 W
• Filtration: inlet filtration 0.01 µm (optional active carbon 0.003 µm); outlet filtration 3–5 µm (optional)
• Operating ambient conditions indicated (20 °C, 0 m above sea level, 1.0133 bar, 70% humidity); consult manufacturer for other conditions
• Technology: PSA (Pressure Swing Adsorption) on-site nitrogen generation
