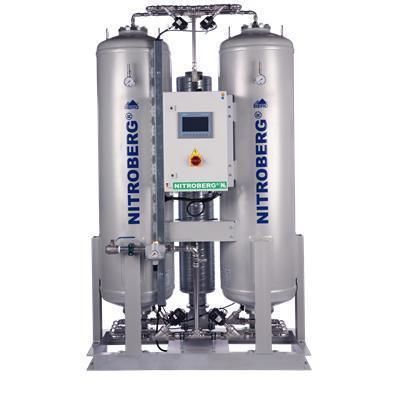

Ultra high-purity nitrogen generator NITROBERG® 1100

inerthigh-purityUHP

Product information
NITROBERG® 1100 Nitrogen Generator provides on-site nitrogen production with adjustable purity from 97% to 99.999% for industrial uses such as inerting, purging and blanketing. The compact, low-maintenance design supports continuous operation, reduces dependency on cylinder deliveries and can be configured with optional filtration and controls to meet process requirements.

Performance table
Nitrogen content: 97% | 98% | 99% | 99.5% | 99.9% | 99.99% | 99.995% | 99.999%
Capacity (Nm3/h): 117.7 | 94.6 | 78.1 | 68.2 | 45.1 | 24.2 | 18.7 | 13.2
Compressed air factor: 2.3 | 2.3 | 2.6 | 2.9 | 3.4 | 4.6 | 5.2 | 6.4
Compressed air (Nm3/h): 270.7 | 217.6 | 203.1 | 197.8 | 153.3 | 111.3 | 97.2 | 84.5
Compressed air (m3/h *): 290.5 | 233.5 | 217.9 | 212.2 | 164.5 | 119.4 | 104.3 | 90.7
Product vessel (l): 750 | 750 | 750 | 750 | 750 | 500 | 500 | 500
Compressed air vessel (l): 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750

Overview
The NITROBERG® 1100 is designed for stable on-site nitrogen supply with selectable purity to match process needs. Typical uses include inerting of tanks and lines, purging, blanketing and other industrial applications where controlled nitrogen quality and flow are required. System configuration options include inlet/outlet filtration and control interfaces.

Technical data (summary table)
Nitrogen Generator: NITROBERG® 1100
Part No.: 1020201100
Dimensions (LxWxH mm): 730 x 1330 x 2230
Max. pressure: 11 bar
Operating pressure: 8 bar
Net weight: 930 kg
Noise level: 55 max / 85 dB(A)
Ambient temperature: +5 to +40 °C
Electrical connection: 230V 50Hz / 110V 60Hz
Power consumption: 150 W
Safety class: IP54
Inlet Filtration: 0.01 micron (optional)
Inlet filtration (Active carbon filter): 0.003 micron (optional)
Outlet Filtration: 3 to 5 micron (optional)
Temperature (reference): 20 °C
Above Sea Level (reference): 0 m
Pressure (reference): 1.0133 bar
Humidity (reference): 70%

Characteristics / technical specifications

• Model: NITROBERG® 1100
• Part number: 1020201100
• Capacity at 99.99% N2: 24.2 Nm3/h (other capacities across purity range available as in performance table)
• Compressed air consumption (example values): up to 270.7 Nm3/h depending on purity
• Product vessel: 500–750 L (depending on configuration)
• Compressed air vessel: 750 L (standard on this model)
• Maximum working pressure: 11 bar; operating pressure: 8 bar
• Net weight: 930 kg
• Dimensions (L x W x H): 730 x 1330 x 2230 mm
• Electrical supply options: 230 V 50 Hz or 110 V 60 Hz
• Power consumption (standby/average reference): 150 W
• Noise level: typically 55 dB(A), max 85 dB(A)
• Filtration options: inlet 0.01 μm; active carbon inlet 0.003 μm; outlet 3–5 μm
• Operating ambient temperature range: +5 °C to +40 °C
• Reference altitude, pressure and humidity conditions indicated in technical data (performance varies with conditions)
