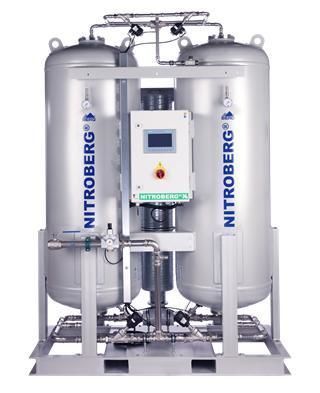

High-purity nitrogen generator NITROBERG® 1600

UHPultra high-purityindustrial

Product information
NITROBERG® 1600 nitrogen generator
101.7 Nm3/h (99.99%)

Performance table (by nitrogen content)
Nitrogen content: 97% | 98% | 99% | 99.5% | 99.9% | 99.99% | 99.995% | 99.999%
Capacity (Nm3/h): 494.9 | 397.7 | 328.4 | 286.7 | 189.6 | 101.7 | 78.6 | 55.5
Compressed air factor: 2.3 | 2.3 | 2.6 | 2.9 | 3.4 | 4.6 | 5.2 | 6.4
Compressed air (Nm3/h): 1,138.2 | 914.8 | 853.7 | 831.5 | 644.7 | 468.0 | 408.8 | 355.2
Compressed air (m3/h)*: 1,221.3 | 981.6 | 916.1 | 892.2 | 691.8 | 502.2 | 438.7 | 381.1
Product vessel (l): 4,000 | 4,000 | 4,000 | 4,000 | 3,000 | 3,000 | 3,000 | 3,000
Compressed air vessel (l): 6,000 | 6,000 | 6,000 | 6,000 | 4,000 | 4,000 | 4,000 | 4,000

Overview
NITROBERG® PSA nitrogen generators deliver on-site nitrogen with selectable purity levels up to 99.999% for industrial applications. Integrated oxygen monitoring enables continuous verification of delivered purity and supports stable system operation.

Technical data (table)

• Nitrogen generator: NITROBERG® 1600
• Part No.: 1020201600
• Reference capacity: 101.7 Nm3/h at 99.99%
• Dimensions (L x W x H): 1,100 x 2,100 x 2,950 mm
• Max. pressure: 11 bar
• Operating pressure: 8 bar
• Net weight: 3,800 kg
• Noise level: 55–85 dB(A)
• Ambient temperature: +5 to +40 °C
• Electrical connection: 230 V 50 Hz / 110 V 60 Hz
• Power consumption: 150 W
• Safety class: IP54
• Inlet filtration: 0.01 micron (0.003 micron with activated carbon option)
• Outlet filtration: 3–5 micron
• Reference conditions: 20 °C, 0 m above sea level, 1.0133 bar, 70% RH*
• Manufacturer: BERG GaseTech GmbH

Applications and features

• On-site PSA nitrogen generation with selectable purity up to 99.999%
• Integrated oxygen monitoring for real-time purity verification
• Large product and compressed-air tanks for stable supply and buffering
• Optional activated-carbon inlet filter and multi-stage outlet filtration
• Designed for continuous industrial use where stable, high-purity nitrogen is required

Technical specifications

• Model: NITROBERG® 1600
• Part number: 1020201600
• Capacity (reference): 101.7 Nm3/h (99.99%)
• Dimensions: 1,100 x 2,100 x 2,950 mm (L x W x H)
• Weight: 3,800 kg
• Operating pressure: 8 bar (max. 11 bar)
• Electrical: 230 V 50 Hz or 110 V 60 Hz
• Power consumption: 150 W
• Noise: 55–85 dB(A)
• Inlet filtration: 0.01 μm (0.003 μm with activated-carbon option)
• Outlet filtration: 3–5 μm
• Product vessel: 3,000–4,000 L (depending on purity)
• Compressed-air vessel: 4,000–6,000 L (depending on purity)
• Operational limits (reference): 20 °C, 1.0133 bar, 70% RH (consult for other conditions)*
• * Consult us for performance under other specific conditions | ** Optional
