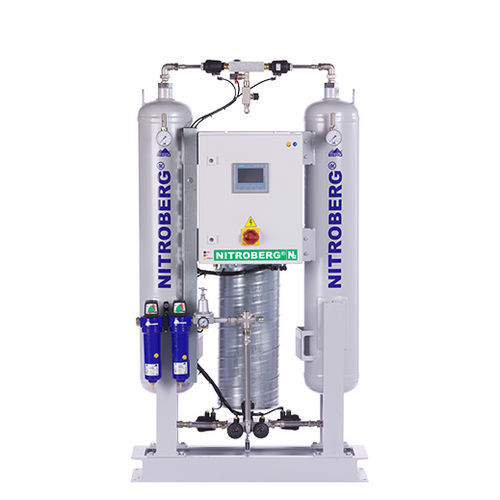

Ultra high-purity nitrogen generator NITROBERG® 700

UHPfor the electronics industrypackaging

Product information
NITROBERG® 700 Nitrogen Generator
6.2 Nm3/h (99.99%)

Capacity table (excerpt)
Nitrogen content: 97% | 98% | 99% | 99.5% | 99.9% | 99.99% | 99.995% | 99.999%
Capacity (Nm3/h): 30.0 | 24.1 | 19.9 | 17.4 | 11.5 | 6.2 | 4.8 | 3.4
Compressed air factor: 2.3 | 2.3 | 2.6 | 2.9 | 3.4 | 4.6 | 5.2 | 6.4
Compressed air (Nm3/h): 68.9 | 55.4 | 51.7 | 50.3 | 39.0 | 28.3 | 24.8 | 21.5
Compressed air (m3/h)*: 73.9 | 59.4 | 55.5 | 54.0 | 41.9 | 30.4 | 26.6 | 23.1
Product vessel (l): 150 (all purities listed)
Compressed air vessel (l): 250 (all purities listed)

Application
NITROBERG® nitrogen generators provide high‑purity nitrogen for electronics manufacturing processes including soldering, reflow, component storage, packaging and cleanroom applications.

Technical specifications

• Model: NITROBERG® 700
• Part No.: 1020200700
• Declared weight (meta): 330 kg
• Net weight (technical data): 320 kg
• Rated capacity: 6.2 Nm3/h (at 99.99% N2)
• Dimensions (L x W x H): 650 x 950 x 1780 mm
• Max. pressure: 11 bar
• Operating pressure: 8 bar
• Noise level: 55 typical, max 85 dB(A)
• Ambient temperature range: +5 to +40 °C
• Electrical connection: 230 V 50 Hz / 110 V 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Inlet filtration: 0.01 micron (standard)
• Inlet activated carbon filter (optional): 0.003 micron
• Outlet filtration (optional): 3–5 micron
• Typical reference conditions: 20 °C, 1.0133 bar, 70% RH (consult manufacturer for other conditions)
• Delivery status: Available; delivery time approx. 4–5 weeks
• Intended applications: soldering, reflow, component storage, packaging, cleanrooms and related electronics manufacturing processes

Documents & delivery
Technical datasheet (PDF) available for NITROBERG® 700. Contact supplier for performance at non‑standard conditions and for delivery scheduling.
