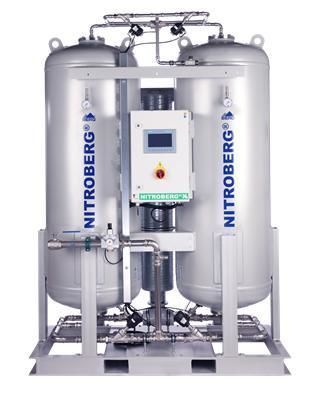

Ultra high-purity nitrogen generator NITROBERG® 2000

UHPinerthigh-purity

Product information
Nitrogen generator NITROBERG® 2000 — 234.7 Nm3/h (99.99%).

Overview
Delivers on-site nitrogen supply for agricultural applications, supporting crop storage, controlled-atmosphere chambers and industrial processes that require defined nitrogen purity. The unit offers adjustable purity levels up to 99.999% and is designed for continuous operation.

Capacity and performance (summary table)
Nitrogen content | 97% | 98% | 99% | 99.5% | 99.9% | 99.99% | 99.995% | 99.999%
Capacity Nm3/h | 1,141.3 | 917.3 | 757.3 | 661.3 | 437.3 | 234.7 | 181.3 | 128.0
Compressed air factor | 2.3 | 2.3 | 2.6 | 2.9 | 3.4 | 4.6 | 5.2 | 6.4
Compressed air Nm3/h | 2,625.0 | 2,109.8 | 1,969.0 | 1,917.8 | 1,486.9 | 1,079.4 | 924.9 | 819.2
Compressed air m3/h * | 2,816.6 | 2,263.8 | 2,112.8 | 2,057.8 | 1,595.4 | 1,158.2 | 1,011.7 | 879.0
Product vessel (l) | 6,000 | 6,000 | 6,000 | 6,000 | 4,000 | 4,000 | 4,000 | 4,000
Compressed air vessel (l) | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000

Applications

• Crop storage inerting and preservation
• Controlled-atmosphere storage and processing in agriculture
• On-site continuous supply for industrial processes requiring high-purity nitrogen

Technical characteristics / specifications

• Model: NITROBERG® 2000
• Part No.: 1020202000
• Capacity at 99.99%: 234.7 Nm3/h
• Dimensions (L x W x H): 2400 x 2250 x 2950 mm
• Max. pressure: 11 bar
• Operating pressure: 8 bar
• Net weight: 7,200 kg
• Noise level: 55 max 85 dB(A)
• Ambient temperature range: +5 to +40 °C
• Electrical connection: 230 V 50 Hz or 110 V 60 Hz
• Power consumption: 150 W
• Protection / Safety class: IP54
• Inlet filtration: 0.01 micron (optional)
• Inlet filtration (activated carbon, optional): 0.003 micron
• Outlet filtration: 3 to 5 micron
• Reference temperature: 20 °C
• Reference pressure: 1.0133 bar
• Reference humidity: 70%
