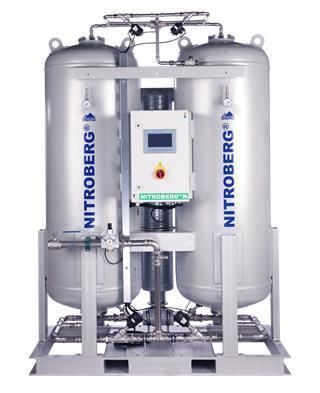

Ultra high-purity nitrogen generator NITROBERG® 3000

inerthigh-purityUHP

Overview
Nitrogen generator NITROBERG® 3000
300.1 Nm3/h (99.99%)

Performance details (table)
Nitrogen purity: 97% | 98% | 99% | 99.5% | 99.9% | 99.99% | 99.995% | 99.999%
Capacity (Nm3/h): 1,459.8 | 1,173.3 | 968.7 | 845.9 | 559.4 | 300.1 | 231.9 | 163.7
Compressed air factor: 2.3 | 2.3 | 2.6 | 2.9 | 3.4 | 4.6 | 5.2 | 6.4
Compressed air (Nm3/h): 3,357.6 | 2,698.6 | 2,518.5 | 2,453.0 | 1,901.9 | 1,380.7 | 1,206.1 | 1,047.8
Compressed air (m3/h) *: 3,602.7 | 2,895.6 | 2,702.4 | 2,632.1 | 2,040.7 | 1,481.5 | 1,294.1 | 1,124.3
Product vessel (L): 6,000 | 6,000 | 6,000 | 6,000 | 4,000 | 4,000 | 4,000 | 4,000
Compressed air tank (L): 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000

Product information

• Commercial name: Nitrogen generator NITROBERG® 3000
• Article number: 1020203000
• Nominal capacity (example shown): 300.1 Nm3/h (at 99.99% purity)
• Dimensions (L x W x H mm): 3250 x 2100 x 2950
• Maximum pressure: 11 bar
• Operating pressure: 8 bar
• Weight: 11,200 kg
• Noise level: 55 max – 85 dB(A)
• Ambient operating temperature: +5 to +40 °C
• Electrical connection: 230 V, 50 Hz or 110 V, 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Inlet fine filter: 0.01 micron (optional)
• Inlet activated carbon filter: 0.003 micron (optional)
• Outlet fine filter: 3–5 microns (optional)
• Reference temperature: 20 °C
• Reference altitude: 0 m
• Reference atmospheric pressure: 1.0133 bar
• Reference relative humidity: 70%

Technical features / specifications

• Technology: PSA (on‑site nitrogen production)
• Available purity ranges: 97% to 99.999%
• Compressed air factor varies with purity (see table above)
• Required compressed air flows per purity are given in the table above
• Recommended product vessel capacity: up to 6,000 L depending on version
• Recommended compressed air tank: 10,000 L depending on version
• Filtration options: high‑precision inlet filters and activated carbon inlet filter (optional); outlet filtration 3–5 μm (optional)
• Operating temperature and reference conditions noted (20 °C, 0 m altitude, 1.0133 bar, 70% RH) — performance may vary with conditions
• Weight and dimensions provided for installation and handling
• Electrical supply and auxiliary consumption: 230 V/50 Hz or 110 V/60 Hz; 150 W
