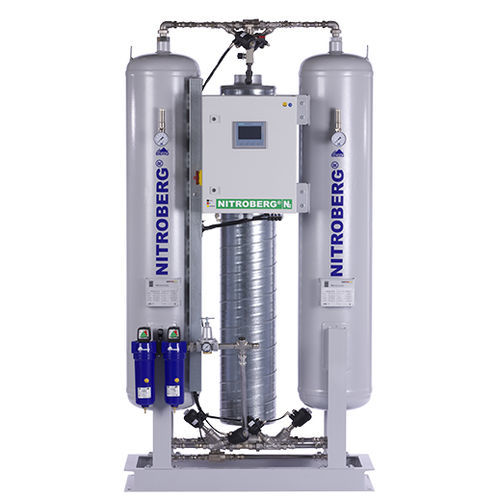

Ultra high-purity nitrogen generator NITROBERG® 1000

inerthigh-purityUHP

Product information
Nitrogen generator NITROBERG® 1000 — up to 89.9 Nm3/h depending on selected purity; example: 18.5 Nm3/h at 99.99% N2.

Performance summary
Nitrogen content: 97% | 98% | 99% | 99.5% | 99.9% | 99.99% | 99.995% | 99.999%
Capacity (Nm3/h): 89.9 | 72.2 | 59.6 | 52.1 | 34.4 | 18.5 | 14.3 | 10.1
Compressed air factor: 2.3 | 2.3 | 2.6 | 2.9 | 3.4 | 4.6 | 5.2 | 6.4
Compressed air (Nm3/h): 206.7 | 166.2 | 155.1 | 151.0 | 117.1 | 85.0 | 74.3 | 64.5
Compressed air (m3/h *): 221.8 | 178.3 | 166.4 | 162.1 | 125.6 | 91.2 | 79.7 | 69.2
Product vessel (l): 500 (all purities shown)
Compressed air vessel (l): 500 (all purities shown)

Operation and benefits
Designed as a PSA (pressure swing adsorption) system, the NITROBERG® 1000 produces continuous on-site nitrogen with selectable purities from 97% to 99.999%. The system provides stable nitrogen quality, predictable operating consumption and suitability for a wide range of industrial processes requiring inert gas or controlled atmospheres.

Filtration options (indicative)

• Inlet fine filter: 0.01 micron (standard/optional depending on configuration)
• Inlet active carbon filter: 0.003 micron (optional)
• Outlet fine filter: 3 to 5 micron (optional)

Technical data / Specifications

• Model: NITROBERG® 1000
• Part No.: 1020201000
• Capacity example: 18.5 Nm3/h at 99.99% (see performance table for other purities)
• Dimensions (L x W x H): 660 x 1180 x 2220 mm
• Max. pressure: 11 bar
• Operating pressure: 8 bar
• Net weight: 880 kg
• Noise level: 55 max / 85 dB(A)
• Ambient temperature: +5 to +40 °C
• Electrical connection: 230 V 50 Hz / 110 V 60 Hz
• Power consumption: 150 W
• Safety class: IP54
• Inlet filtration: 0.01 micron
• Inlet active carbon filter: 0.003 micron (optional)
• Outlet filtration: 3 to 5 micron
• Reference temperature: 20 °C *
• Reference altitude: 0 m *
• Reference pressure: 1.0133 bar *
• Reference humidity: 70% *
• Notes: Performance may vary under specific site conditions; optional items are indicated.
