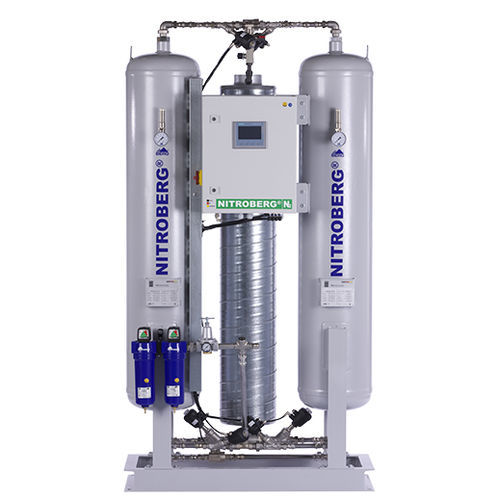

Ultra high-purity nitrogen generator NITROBERG® 800

high-purityUHPlaboratory

Overview
NITROBERG® 800 nitrogen generator. PSA high-purity nitrogen production: 8.8 Nm3/h at 99.99% N2. Designed to supply controlled high-purity nitrogen for electronics manufacturing (soldering, reflow, component storage) and other industrial applications requiring on‑site nitrogen generation.

Performance - Purity / Capacities (excerpt)
Nitrogen content: 97% | 98% | 99% | 99.5% | 99.9% | 99.99% | 99.995% | 99.999%
Capacity (Nm3/h): 42.8 | 34.4 | 28.4 | 24.8 | 16.4 | 8.8 | 6.8 | 4.8
Compressed air factor: 2.3 | 2.3 | 2.6 | 2.9 | 3.4 | 4.6 | 5.2 | 6.4
Compressed air (Nm3/h): 98.4 | 79.1 | 73.8 | 71.9 | 55.8 | 40.5 | 35.4 | 30.7
Compressed air (m3/h) *: 105.6 | 84.9 | 79.2 | 77.1 | 59.9 | 43.4 | 37.9 | 33.0
Product vessel (l): 250 | 250 | 250 | 250 | 250 | 150 | 150 | 150
Compressed air receiver (l): 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250

Applications
NITROBERG® 800 provides high‑purity nitrogen for electronics manufacturing processes including soldering, reflow, component storage and contamination control. Suitable for on‑site nitrogen supply with adjustable purity and controlled operating cost for production lines and laboratories.

Technical data (excerpt)
NITROBERG® 800 nitrogen generator
Article number: 1020200800
Dimensions (L x W x H): 620 x 1020 x 1800 mm
Maximum pressure: 11 bar
Operating pressure: 8 bar
Weight (datasheet): 444 kg
Weight (meta): 500 kg
Noise level: 55 max / 85 dB(A)
Ambient temperature: +5 to +40 °C
Electrical supply: 230 V, 50 Hz or 110 V, 60 Hz
Power consumption: 150 W
Protection class: IP54
Fine filter (inlet): 0.01 micron (optional)
Activated carbon filter (inlet): 0.003 micron (optional)
Fine filter (outlet): 3–5 microns (optional)
Reference temperature *: 20 °C
Reference altitude *: 0 m
Reference atmospheric pressure *: 1.0133 bar
Reference relative humidity *: 70%
Note: * performance under reference conditions; ** items marked optional.

Features / technical specifications

• Model: NITROBERG® 800
• Nominal capacity (example): 8.8 Nm3/h (at 99.99% N2)
• Available nitrogen purity: 97% → 99.999% (configurable ranges)
• Compressed air factor: depends on purity, 2.3 to 6.4
• Compressed air required (Nm3/h): values per purity (e.g. 40.5 Nm3/h for 99.99% → capacity 8.8 Nm3/h)
• Recommended product vessel: 150–250 L (depending on capacity)
• Recommended compressed air receiver: 250 L (depending on configuration)
• Dimensions (L x W x H): 620 x 1020 x 1800 mm
• Weight: 444 kg (datasheet) / 500 kg (meta)
• Operating pressure: 8 bar (max 11 bar)
• Electrical supply: 230 V 50 Hz or 110 V 60 Hz
• Electrical power consumption: 150 W
• Noise level: 55 – 85 dB(A)
• Protection class: IP54
• Filters: inlet fine 0.01 µm, inlet activated carbon 0.003 µm, outlet fine 3–5 µm (optional)
