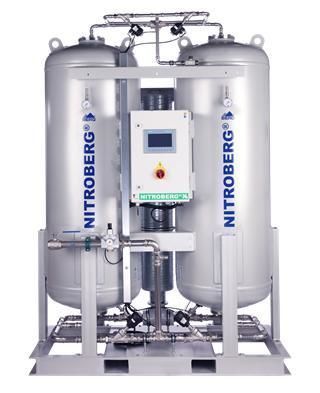

High-purity nitrogen generator NITROBERG® 1500

UHPindustrialPSA

Overview
NITROBERG® 1500 nitrogen generator. Reliable on-site nitrogen supply for tank inerting, gas blanketing and pipeline purging in oil & gas and industrial applications.

Capacity and purity
82.7 Nm3/h (99.99% N2)

Performance table
Nitrogen content: 97% | 98% | 99% | 99.5% | 99.9% | 99.99% | 99.995% | 99.999%
Capacity (Nm3/h): 402.3 | 323.4 | 267.0 | 233.1 | 154.2 | 82.7 | 63.9 | 45.1
Compressed air factor: 2.3 | 2.3 | 2.6 | 2.9 | 3.4 | 4.6 | 5.2 | 6.4
Compressed air (Nm3/h): 925.3 | 743.7 | 694.1 | 676.0 | 524.1 | 380.5 | 332.4 | 288.8
Compressed air (m3/h *): 992.8 | 798.0 | 744.8 | 725.3 | 562.4 | 408.3 | 356.7 | 309.9
Product container (l): 3,000 | 3,000 | 3,000 | 3,000 | 2,000 | 2,000 | 2,000 | 2,000
Compressed air tank (l): 4,000 | 4,000 | 4,000 | 4,000 | 3,000 | 3,000 | 3,000 | 3,000

Additional description
NITROBERG® nitrogen generators provide a reliable nitrogen supply for tank inerting, blanketing and pipeline purging in oil & gas operations and other industrial uses requiring high-purity nitrogen. On-site PSA production with continuous purity monitoring and selectable filtration options to meet application requirements.

Characteristics / technical specifications

• Model: NITROBERG® 1500
• Article number: 1020201500
• Rated capacity: 82.7 Nm3/h (at 99.99% N2)
• Dimensions (L x W x H): 1040 x 1950 x 2680 mm
• Maximum pressure: 11 bar
• Operating pressure: 8 bar
• Weight: approx. 2,810 kg
• Noise level: 55 to max. 85 dB(A)
• Operating ambient temperature: +5 to +40 °C
• Electrical connection: 230 V, 50 Hz and 110 V, 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Fine filter (inlet): 0.01 micron (optional)
• Activated carbon filter (inlet): 0.003 micron (optional)
• Fine filter (outlet): 3 to 5 microns (optional)
• Reference temperature: 20 °C
• Reference elevation: 0 m
• Reference atmospheric pressure: 1.0133 bar
• Reference relative humidity: 70%
• Recommended product containers / tanks: see performance table (e.g. product container 3,000 l; compressed air tank 4,000 l depending on purity)
• Notes: performance values based on standard reference conditions; specific options and configurations available as optional equipment.
