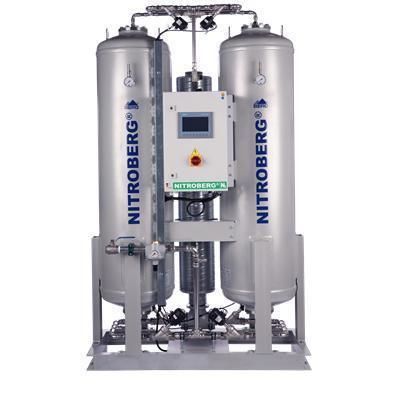

Ultra high-purity nitrogen generator NITROBERG® 1200

UHPfor productionindustrial

Overview
Nitrogen generator NITROBERG® 1200 — 29.9 Nm3/h (99.99%).

Performance (table)
Nitrogen purity: 97% | 98% | 99% | 99.5% | 99.9% | 99.99% | 99.995% | 99.999%
Capacity (Nm3/h): 145.5 | 117.0 | 96.6 | 84.3 | 55.8 | 29.9 | 23.1 | 16.3
Compressed air factor: 2.3 | 2.3 | 2.6 | 2.9 | 3.4 | 4.6 | 5.2 | 6.4
Compressed air requirement (Nm3/h): 334.7 | 269.0 | 251.1 | 244.5 | 189.6 | 137.6 | 120.2 | 104.4
Compressed air (m3/h)*: 359.1 | 288.6 | 269.4 | 262.3 | 203.4 | 147.6 | 129.0 | 112.0
Product vessel (l): 750 for all configurations
Air receiver (l): 1,000 for all configurations

Description
BERG provides on-site compressed air and gas generation solutions for plants, supporting production lines, automation, packaging and industrial processes.

Technical specifications

• Model: NITROBERG® 1200
• Article number (SKU): 1020201200
• Dimensions (L x W x H): 730 x 1500 x 2330 mm
• Maximum pressure: 11 bar
• Operating pressure: 8 bar
• Weight: 1,030 kg
• Noise level: 55 typical, max 85 dB(A)
• Ambient temperature: +5 to +40 °C
• Electrical connection: 230 V, 50 Hz; 110 V, 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Fine filter (inlet) (optional): 0.01 micron
• Activated carbon filter (inlet) (optional): 0.003 micron
• Fine filter (outlet) (optional): 3 to 5 microns
• Reference temperature: 20 °C
• Reference elevation: 0 m
• Reference atmospheric pressure: 1.0133 bar
• Reference relative humidity: 70%
• Product vessel: 750 l
• Air receiver: 1,000 l
