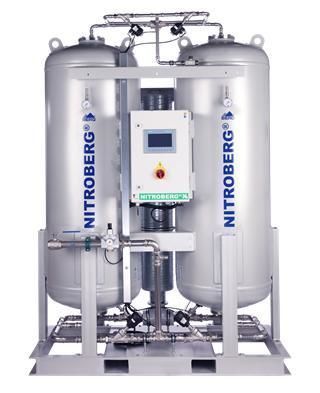

UHP nitrogen generator NITROBERG® 1400

high-purityindustrialPSA

Product information
Nitrogen Generator NITROBERG® 1400 — 59.0 Nm3/h (99.99%).

Capacity table
Nitrogen content | 97% | 98% | 99% | 99,5% | 99,9% | 99,99% | 99,995% | 99,999%
Capacity (Nm3/h) | 286.8 | 230.5 | 190.3 | 166.2 | 109.9 | 59.0 | 45.6 | 32.2
Compressed air factor | 2.3 | 2.3 | 2.6 | 2.9 | 3.4 | 4.6 | 5.2 | 6.4
Compressed air (Nm3/h) | 659.5 | 530.1 | 494.7 | 481.9 | 373.6 | 271.2 | 236.9 | 205.8
Compressed air (m3/h)* | 707.6 | 568.8 | 530.9 | 517.1 | 400.9 | 291.0 | 254.2 | 220.9
Product vessel (l) | 2,000 | 2,000 | 2,000 | 2,000 | 1,500 | 1,500 | 1,500 | 1,500
Compressed air vessel (l) | 3,000 | 3,000 | 3,000 | 3,000 | 2,000 | 2,000 | 2,000 | 2,000

Description
NITROBERG® 1400 provides on-site nitrogen generation with adjustable purities from 97% to 99.999% and capacities up to 286.8 Nm3/h. The unit uses PSA (Pressure Swing Adsorption) technology to deliver consistent nitrogen quality for a range of industrial applications.

Key features

• On-site nitrogen production using PSA to reduce dependency on supplied gas cylinders or bulk deliveries.
• Adjustable purity range (97%–99.999%) with modular capacity points to match process requirements.
• Options for inlet and outlet filtration to meet application-specific contamination limits.
• Designed for continuous industrial operation with configurable product and air receiver volumes.

Filters (optional)
Inlet fine filter: 0.01 micron
Inlet activated carbon filter (optional): 0.003 micron
Outlet fine filter: 3 to 5 micron

Technical data

• Model: NITROBERG® 1400
• Part No.: 1020201400
• Rated capacity (example @99.99%): 59.0 Nm3/h
• Dimensions (L x W x H): 930 x 1780 x 2480 mm
• Max. pressure: 11 bar
• Operating pressure: 8 bar
• Net weight: 2,160 kg
• Noise level: 55 max 85 dB(A)
• Ambient temperature range: +5 to +40 °C
• Electrical connection: 230 V 50 Hz / 110 V 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Reference temperature: 20 °C
• Reference altitude: 0 m
• Reference pressure: 1.0133 bar
• Reference humidity: 70%

*Performance values are referenced to the specified standard conditions; optional features and site conditions may affect performance.
