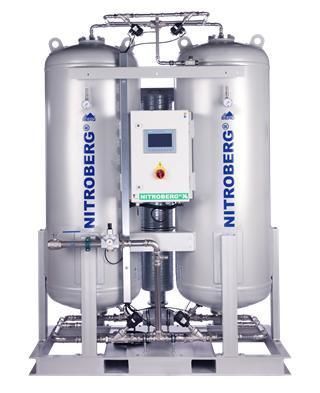

Ultra high-purity nitrogen generator NITROBERG® 1900

inertUHPindustrial

Product information
NITROBERG® 1900 nitrogen generator — 200.4 Nm3/h (99.99% N2)

Capacity table
Nitrogen content | 97% | 98% | 99% | 99.5% | 99.9% | 99.99% | 99.995% | 99.999%
Capacity (Nm3/h) | 974.9 | 783.5 | 646.9 | 564.9 | 373.5 | 200.4 | 154.9 | 109.3
Compressed air factor | 2.3 | 2.3 | 2.6 | 2.9 | 3.4 | 4.6 | 5.2 | 6.4
Compressed air (Nm3/h) | 2,242.2 | 1,802.1 | 1,681.9 | 1,638.1 | 1,270.1 | 922.0 | 805.4 | 699.7
Compressed air (m3/h) * | 2,405.9 | 1,933.7 | 1,804.7 | 1,757.7 | 1,362.8 | 989.3 | 864.2 | 750.8
Product vessel (l) | 6,000 | 6,000 | 6,000 | 6,000 | 4,000 | 4,000 | 4,000 | 4,000
Compressed air vessel (l) | 9,000 | 9,000 | 9,000 | 9,000 | 9,000 | 9,000 | 9,000 | 9,000

Overview
NITROBERG® nitrogen generators provide on-site PSA nitrogen production with adjustable purity and high capacity for beverage-industry applications. They are designed to prevent oxidation, preserve product quality and extend shelf life during production, bottling and storage.

Technical data (summary)
Part No.: 1020201900
Dimensions (L x W x H, mm): 2150 x 2100 x 2950
Max. pressure: 11 bar
Operating pressure: 8 bar
Net weight: 5,950 kg
Noise level: 55 — max 85 dB(A)
Ambient temperature: +5 to +40 °C
Electrical connection: 230V 50Hz / 110V 60Hz
Power consumption: 150 W
Safety class: IP54
Inlet filtration: 0.01 micron
Inlet filtration (activated carbon, optional): 0.003 micron
Outlet filtration (optional): 3–5 micron
Reference temperature: 20 °C*
Reference altitude: 0 m*
Reference pressure: 1.0133 bar*
Reference humidity: 70%*
*Performance may vary under other specific conditions.

Characteristics / technical specifications

• Model: NITROBERG® 1900
• Capacity at 99.99% N2: 200.4 Nm3/h
• Purity range presented: 97% – 99.999%
• Compressed air requirement examples: up to 2,242.2 Nm3/h (depends on target purity)
• Product vessel sizes: up to 6,000 L (depending on configuration)
• Compressed air vessel sizes: up to 9,000 L (depending on configuration)
• Dimensions (L x W x H): 2150 x 2100 x 2950 mm
• Maximum pressure: 11 bar; Operating pressure: 8 bar
• Net weight: approx. 5,950 kg
• Noise level: 55 — max 85 dB(A)
• Electrical: 230V 50Hz / 110V 60Hz
• Power consumption (standby/control): 150 W
• IP rating: IP54
• Filtration: inlet 0.01 μm; activated carbon option 0.003 μm; outlet 3–5 μm (optional)
• Environmental reference conditions indicated (temperature, altitude, pressure, humidity)
