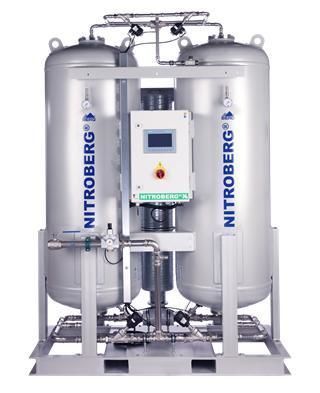

Ultra high-purity nitrogen generator NITROBERG® 1800

high-purityUHPhigh-concentration

Product information
Nitrogen Generator NITROBERG® 1800
163.0 Nm3/h (99.99%)

Capacity and performance per nitrogen purity
Nitrogen content: 97% | 98% | 99% | 99.5% | 99.9% | 99.99% | 99.995% | 99.999%
Capacity (Nm3/h): 792.6 | 637.0 | 525.9 | 459.2 | 303.7 | 163.0 | 125.9 | 88.9
Compressed air factor: 2.3 | 2.3 | 2.6 | 2.9 | 3.4 | 4.6 | 5.2 | 6.4
Compressed air (Nm3/h): 1,822.9 | 1,465.1 | 1,367.4 | 1,331.8 | 1,032.6 | 749.6 | 654.8 | 568.9
Compressed air m3/h *: 1,956.0 | 1,572.1 | 1,467.2 | 1,429.0 | 1,107.9 | 804.3 | 702.6 | 610.4
Product vessel (l): 5,000 | 5,000 | 5,000 | 5,000 | 3,000 | 3,000 | 3,000 | 3,000
Compressed air vessel (l): 8,000 | 8,000 | 8,000 | 8,000 | 6,000 | 6,000 | 6,000 | 6,000

Overview
NITROBERG® 1800 provides on-site nitrogen generation with adjustable purity from 97% to 99.999% and scalable capacity (see capacity table above; maximum example: 792.6 Nm3/h). The system uses PSA (Pressure Swing Adsorption) technology to deliver reliable, continuous nitrogen supply with low operating costs and configurable purity for industrial processes.

Key features

• On-site nitrogen generation using PSA technology
• Adjustable nitrogen purity: 97% to 99.999%
• Capacity and compressed air requirements vary by target purity (see table)
• Inlet/outlet filtration options (fine filter and activated carbon available)
• Designed for continuous industrial operation with integrated production and buffering vessels

Technical specifications

• Model: NITROBERG® 1800
• Part No.: 1020201800
• Reference capacity example: 163.0 Nm3/h (for 99.99% N2)
• Dimensions (L x W x H): 1900 x 1940 x 2670 mm
• Max. pressure: 11 bar
• Operating pressure: 8 bar
• Net weight: 5,500 kg
• Noise level: 55 max – 85 dB(A)
• Ambient operating temperature: +5 to +40 °C
• Electrical connection: 230 V 50 Hz / 110 V 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Inlet filtration (fine): 0.01 micron (optional)
• Inlet activated carbon filter: 0.003 micron (optional)
• Outlet filtration: 3 to 5 micron (optional)
• Reference conditions noted for temperature, pressure and humidity*
• Product and compressed-air vessel sizes: see capacity table above per configuration
