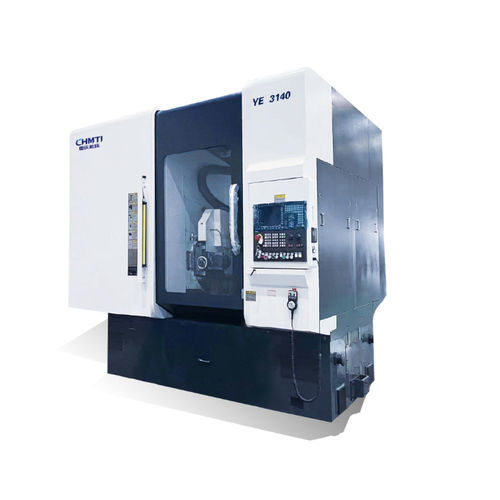

CNC gear-cutting machine YE3140/YE3160

horizontal

Product overview
This machine is primarily designed for high-volume, high-efficiency gear hobbing for gears used in passenger vehicles, commercial vehicles, construction machinery, marine equipment, agricultural machinery and gearboxes. Machining accuracy can meet GB/T10095.1-2008 grade 6.

Main performance and features

• The machine is a six-axis, four-axis-interpolated CNC high-efficiency gear hobbing machine capable of dry cutting, wet cutting, minimum quantity lubrication (MQL) and water-based coolant cutting.
• The worktable is driven directly by a torque motor; the cutter head uses a single-tooth-difference gear transmission.
• The worktable spindle system and the X, Y, Z axis lead screws and bearings use oil-air lubrication.
• The Y axis employs a large-column moving saddle for axial cutter travel; the structure is compact with good dynamic and static rigidity, suitable for multi-head hobs and large axial feed, particularly for efficient machining of medium and large module gears.
• X and Z axes use imported linear guides; Y axis uses high/low level polymer-coated guideways.
• Equipped with fully enclosed guards, automatic chip removal, and automatic workpiece clamping; optional automatic loading/unloading unit and workpiece magazine; can be integrated into automated gear production lines.
• Includes a user-friendly HMI, parametric programming functions and system self-diagnostics.
• Control system configurable with FANUC or SIEMENS.

Main technical specifications (comparison YE3140 / YE3160)
Item | Main technical specification | Unit | YE3140 | YE3160
1 | Maximum workpiece diameter | mm | 400 | 600
2 | Maximum workpiece module | mm | 8 (wet 12) | 8 (wet 12)
3 | Maximum indexing angle (A axis) | deg | ±45° | ±45°
4 | Maximum hob installation diameter × length | — | Φ170×230 | Φ170×230
5 | Maximum axial cutter travel (Y axis) | mm | 200 | 200
6 | Hob center to worktable center horizontal distance (X axis) | mm | 70-370 | 70-420
7 | Hob center to worktable top vertical distance (Z axis) | mm | 250-850 | 250-850
8 | Outer support end face to worktable top distance (Z2 axis) | mm | 400-900 | 400-900
9 | Maximum hob spindle speed (B axis) | rpm | 1500 | 1500
10 | Maximum worktable speed (C axis) | rpm | 200 | 200
11 | Main motor power | kW | 22 | 22

Features / Specifications (summary)

• Model/No.: YE3140 / YE3160
• Product name: CNC gear hobbing machine
• Applicable industries: passenger vehicles, commercial vehicles, construction machinery, marine equipment, agricultural machinery, gearboxes and other gear processing
• Machining accuracy: up to GB/T10095.1-2008 grade 6
• Axes & linkage: six axes, four-axis interpolation
• Cutting modes: dry cutting / wet cutting / MQL / water-based coolant cutting
• Main motor power: 22 kW
• Maximum hob speed: 1500 rpm; maximum worktable speed: 200 rpm
• Typical hob installation diameter × length: Φ170×230
• Available control systems: FANUC or SIEMENS
