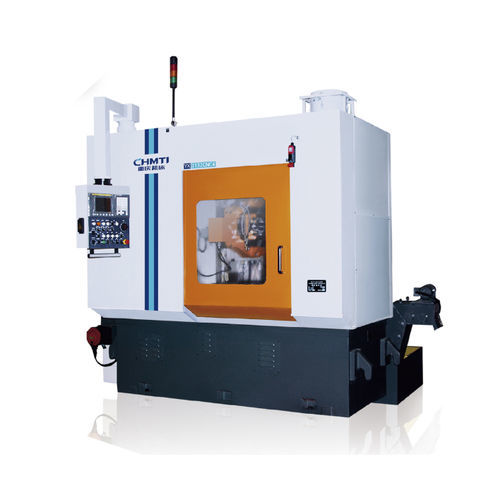

CNC gear-cutting machine YX3132

horizontalfor bevel gear

Overview
The machine is mainly used for hobbing in the gear industry for passenger cars, commercial vehicles, construction machinery, marine machinery, agricultural machinery, mining machinery and similar applications. Machining accuracy can reach grade 6-7 according to GB/T10095.1-2008.

Main performance and features:

• The machine is a five-axis four-link wet-cutting CNC gear hobbing machine.
• It features an intuitive human-machine interface, parameterized automatic programming and system self-diagnosis functions.
• Equipped with a fully enclosed guard, oil mist collection device, automatic chip removal and automatic workpiece clamping; easily integrable into automated gear processing lines.
• Configured with a domestic CNC system by default; FANUC or SIEMENS systems are optional.
• Capable of machining cylindrical spur gears, helical gears, small taper gears, crowned gears, sprockets, splines, worm gears, etc.; supports multiple indexing cycles.

Main technical specifications:

• Max workpiece diameter: 320 mm
• Max workpiece module: 8
• Spindle max speed: 540 r/min
• Worktable max speed: 32 r/min
• Max cutter size (Ø×L): Φ160×200 mm
• Max shuttling distance: 150 mm

Characteristics / specifications (list)

• Product name: CNC gear hobbing machine
• Product code: YX3132CNC
• Applicable industries: passenger cars, commercial vehicles, construction machinery, marine machinery, agricultural machinery, mining machinery and other gear processing
• Machining accuracy: up to grade 6-7 according to GB/T10095.1-2008
• Structure: five-axis four-link, wet-cutting CNC
• Control: supports domestic CNC systems; FANUC or SIEMENS optional
• Main dimensions/parameters: Max workpiece diameter 320 mm; Max module 8; Spindle max speed 540 r/min; Worktable max speed 32 r/min; Max cutter size Φ160×200 mm; Max shuttling distance 150 mm
