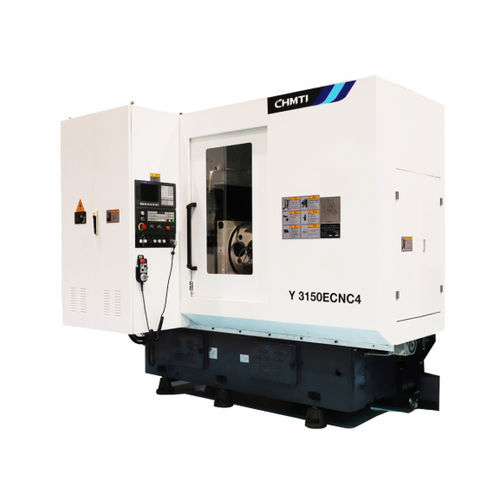

CNC gear-hobbing machine Y3150E4/5

horizontalfor bevel gear

Product overview
The machine is designed for gear machining in passenger vehicles, commercial vehicles, construction machinery, ship machinery, agricultural machinery and lifting equipment industries. Machining accuracy can reach GB/T10095.1-2008 grade 6–7 (final accuracy subject to technical agreement between supplier and buyer).

Main performance and features

• The machine is a 4-/5-axis four-linkage wet-cut CNC gear hobbing machine.
• Standard configuration includes a domestic CNC system with HMI and parametric programming; supports single setup for multiple, repeated contour cycles.
• The machine is equipped with a fully enclosed guard; optional accessories include oil-mist collection, automatic chip removal and automatic workpiece clamping.

Applications and machining capability

• Capable of machining cylindrical spur gears, helical gears, small-cone gears, barrel-shaped gears, sprockets, splines and worm wheels.

Main technical specifications (table)
No. | Main technical specification | Unit/Notes | Y3150ECNC4 | Y3150ECNC5
1 | Maximum workpiece diameter | mm | 500 | 500
2 | Maximum workpiece module | mm | 8 | 8
3 | Maximum spindle speed | r/min | 350 | 450
4 | Maximum table speed | r/min | 25 | 25
5 | Maximum cutter size (diameter × length) | mm | Φ160×160 | Φ180×200
6 | Maximum manual cutter travel | mm | 50 | 200 (automatic)

Materials and processing notes

• Designed as a wet-cutting system, suitable for gear hobbing processes.
• Machining accuracy and control system configuration can be customized per purchaser technical agreement.

Features / Technical specifications

• Product number / model: Y3150ECNC4/5
• Product name: Series upgraded CNC gear hobbing machine
• Applicable industries: passenger vehicles, commercial vehicles, construction machinery, ship machinery, agricultural machinery, lifting equipment and other gear processing industries
• Machining accuracy: up to GB/T10095.1-2008 grade 6–7 (subject to technical agreement)
• Maximum spindle speed (Y3150ECNC4): 350 r/min; (Y3150ECNC5): 450 r/min
• Maximum workpiece diameter: 500 mm (both models)
• Maximum workpiece module: 8 mm (both models)
• Maximum table speed: 25 r/min (both models)
• Maximum cutter size: Y3150ECNC4 Φ160×160 mm; Y3150ECNC5 Φ180×200 mm
• Maximum manual/automatic cutter travel: Y3150ECNC4 50 mm (manual); Y3150ECNC5 200 mm (automatic)
• CNC configuration: 4-/5-axis four-linkage CNC (wet cutting)
• Standard configuration: domestic CNC system (HMI, parametric programming)
• Optional accessories: oil-mist collector, automatic chip removal, automatic workpiece clamping, etc.
