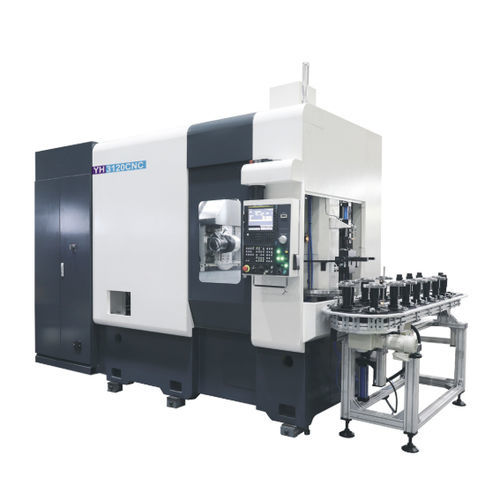

CNC gear-cutting machine YS3120(CD)/YH3120CNC(CD)

vertical

Overview
Machine suitable for gear machining in industries such as motorcycles, passenger cars, instruments and meters, power tools, general machinery and reducers. Offers high cost-effectiveness. Machining accuracy can reach GB/T10095.1-2008 standard Grade 6.

Main performance and features

• Six-axis / thirteen-axis four-link dry-cut hobbing machine, designed for energy-efficient, environmentally friendly high-speed operation.
• YS3120/YS3120-CD: each CNC motion axis driven by independent AC servo motors; B-axis uses a high-power spindle servo motor with two-stage high-precision helical gear transmission and end mechanism; C-axis uses high-precision helical gears for high-speed, high-precision indexing.
• YH3120/YH3120-CD: B-axis directly driven by an internal motor; C-axis driven by an internal torque motor; worktable spindle supported by high-precision angular contact ball bearings.
• Vertical layout with column horizontal movement for radial feed to achieve efficient hobbing.
• Compact structure and small footprint; full-enclosed guards, internal chip protection and dry cooling system enable high-speed dry cutting of gears.
• Can be configured with forming-mill hob cutting for chamfering to combine multiple operations.
• Optional single-machine automation and various connectivity interfaces to support automated and flexible production lines.
• Optional gear-pairing mechanism for post-heat finishing hobbing.
• Control system options: FANUC, SIEMENS or GSK25iG.

Main technical specifications
Note: table columns read as "Specification / YS3120/YS3120-CD / YH3120/YH3120-CD"
Max workpiece diameter (mm): 200 / 200
Max workpiece module (mm): 6 / 6
Tool head max rotation angle (°): ±45° / ±45°
Hob spindle max speed (r/min): 1500 / 2300
Worktable max speed (r/min): 200 / 250
Max cutter size (Dia×Length, mm): Φ130×230 / Φ130×230
Hob max axial travel (mm): 180 / 180
Distance from hob center to worktable rotary center (mm): 30–230 / 30–230
Distance from hob center to worktable surface (mm): 185–485 / 185–485

Applicable / recommended industries

• Small and medium gear machining for motorcycles, passenger cars, general machinery, reducers, power tools and instruments.
• For heavy gear machining scenarios, consider larger models with similar configurations.

Remarks
Multiple models and configurations available (e.g., YS3120 series, YH3120 series). Control system and options can be selected according to the workpiece and automation requirements.

Key specifications

• Machining accuracy: up to GB/T10095.1-2008 Grade 6.
• Max workpiece diameter: 200 mm (both model variants).
• Max workpiece module: 6 mm.
• Tool head max rotation angle: ±45°.
• Hob spindle max speed: YS3120 series 1500 r/min; YH3120 series 2300 r/min.
• Worktable max speed: YS3120 series 200 r/min; YH3120 series 250 r/min.
• Max cutter size: Φ130×230 mm.
• Hob max axial travel: 180 mm.
• Hob center to worktable rotary center distance range: 30–230 mm.
• Hob center to worktable surface distance: 185–485 mm.
• Control system options: FANUC, SIEMENS, GSK25iG.
