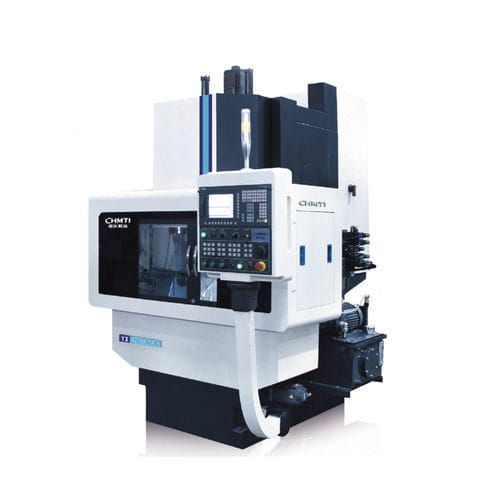

CNC gear-cutting machine YX42305

horizontalfor bevel gear

Overview
Primarily intended for gear machining in passenger cars, commercial vehicles and precision reducers. Machining accuracy can reach GB/T10095.1-2008 grade 5-6.

Main performance and features:

• The machine is a five-axis CNC gear shaving machine; each motion axis is driven by an independent AC servo motor, enabling axial shaving, radial shaving, diagonal shaving and tangential shaving.
• The machine adopts a vertical layout; the column and bed are a high-rigidity integrally cast structure; the tangential saddle is arranged within the radial slide, providing high rigidity, compact structure and neat appearance.
• The X, Y, Z axes are driven by digital servo motors with ball screws, ensuring high positioning and repeatability accuracy and stable machining precision.
• The machine is equipped with a human-machine interface; the operator inputs tool parameters, workpiece parameters, compensation and cutting parameters via the dialogue interface; the machine runs automatically and applies automatic compensation.
• Optional automatic loading/unloading device and gantry system enable continuous automated processing to meet automation requirements.
• Suitable for shaving of external spur and helical cylindrical gears, couplings and stepped gears.

Main technical specifications (table shown as lines)
Header: No | Main technical specification | Unit | YX4230CNC5
1 | Maximum workpiece diameter | mm | 300
2 | Maximum workpiece module | m | axial shaving 8, radial shaving 5
3 | Shaving cutter speed range | r/min | 50-500
4 | Worktable feed speed | mm/min | 1-1000
5 | Radial saddle feed speed | mm/min | 0.2-1000
6 | Tangential saddle feed speed | mm/min | 1-500
7 | Distance range from shaving cutter rotation center to center of dead center | mm | 125-280

Characteristics / technical specifications

• Product name: CNC high-efficiency gear shaving machine
• Model: YX4230CNC5
• Applicable industries: gear machining for passenger cars, commercial vehicles and precision reducers
• Machining accuracy: up to GB/T10095.1-2008 grade 5-6
• Machine type: five-axis CNC gear shaving machine
• Drive system: each axis driven by independent AC servo motors (X, Y, Z driven by digital servo + ball screw)
• Shaving modes: axial shaving, radial shaving, diagonal shaving, tangential shaving
• Layout and structure: vertical layout with integrally cast high-rigidity column and bed; tangential saddle arranged within radial slide
• HMI: equipped with human-machine dialogue interface supporting input of tool/workpiece/compensation/cutting parameters and automatic compensation
• Automation: optional automatic loading/unloading and gantry systems for continuous processing
• Maximum workpiece diameter: 300 mm
• Maximum workpiece module: axial shaving 8, radial shaving 5
• Shaving cutter speed range: 50-500 r/min
• Worktable feed speed: 1-1000 mm/min
• Radial saddle feed speed: 0.2-1000 mm/min
• Tangential saddle feed speed: 1-500 mm/min
• Distance from shaving cutter rotation center to dead center range: 125-280 mm
