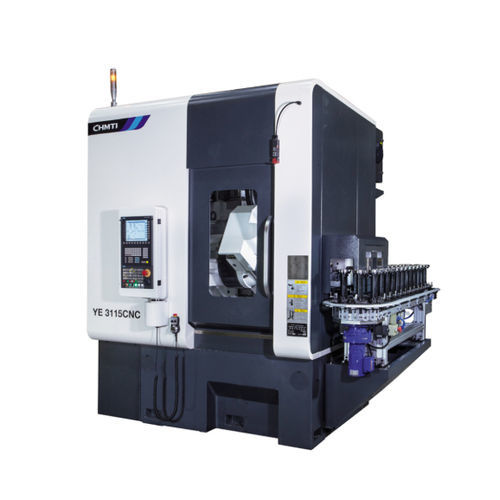

CNC gear-cutting machine YE3115/YDE3120-CD

vertical

Overview
Designed for high-volume hobbing of gears used in new energy vehicles, automatic transmissions and precision reducers. Machining accuracy meets GB/T10095.1-2008 grade 5–6.

Main performance and features

• Eight-axis, four-link high-speed dry-cut hobbing machine enabling efficient, environmentally compatible production.
• Vertical offset-column layout with horizontal slide for radial feed; full enclosure, rapid chip evacuation and dry cooling ensure thermal stability and dimensional consistency.
• Cutter and workpiece spindles use direct-drive transmission for fast response and high running accuracy. Equipped with premium dry hobs enabling cutting speeds above 300 m/min for small and medium modules; throughput can exceed wet-cut machines by over three times.
• Available single-machine loading/unloading units and automatic transfer hopper to support automated, flexible production lines.
• Compatible with Siemens or FANUC CNC control systems.
• YDE3120CNC-CD can be equipped with an extrusion chamfering and deburring module to consolidate multiple operations.

Main technical specifications
Model: YE3115CNC | YDE3120CNC-CD
1 - Max workpiece diameter (mm) - 150 | 210
2 - Max module (mm) - 4 | 4
3 - Max cutter head swivel angle (deg) - ±45° | ±45°
4 - Max hob spindle speed (r/min) - 2500 | 3000
5 - Max table speed (r/min) - 300 | 300
6 - Max tool shank size (Ø×L) (mm) - Φ130×180 | Φ130×230
7 - Max hob axial travel (mm) - 150 | 180
8 - Distance hob center to table rotation center (mm) - 15-155 | 30-180
9 - Distance hob center to table surface (mm) - 180-480 | 195-495

Key features / technical highlights

• Target industries: mass hobbing for new energy vehicles, automatic transmissions and precision reducers.
• Machine type: eight-axis, four-link high-speed dry-cut hobbing with dry cooling for environmental efficiency.
• Main drive: direct-drive cutter and workpiece spindles delivering high speed and precision.
• Productivity: cutting speeds for small/medium module gears exceed 300 m/min, with significantly higher throughput than wet-cut machines.
• Automation: optional single-machine loading/unloading and automatic transfer hopper for flexible automated production.
• Control: Siemens or FANUC CNC options.
• Model differences: YE3115CNC and YDE3120CNC-CD differ in max workpiece diameter, hob spindle speed and tool shank length.
