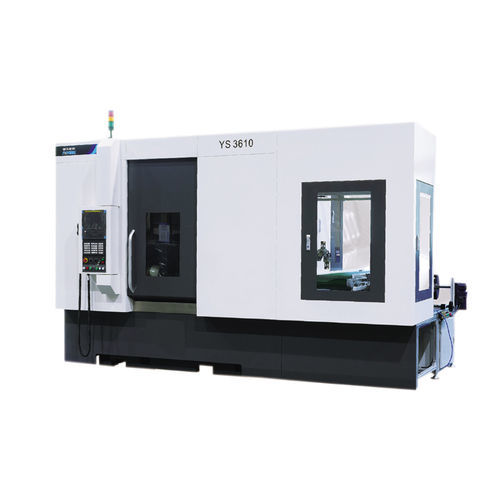

CNC gear-cutting machine YS3610

horizontal

Overview
The YS3610 is a horizontal CNC gear hobbing machine designed for cutting small-module, large-helix-angle gears used in motorcycles, instruments, toys, fishing tackle and similar industries. The machine supports dry cutting processes and can achieve machining accuracy up to GB/T10095.1-2008 grade 6.

Main performance and features

• Six-axis, four-linkage horizontal dry-cut gear hobbing machine tailored for small-module, high-helix-angle gears.
• Compact machine structure with full external and internal protective guards to enable safe dry machining.
• Horizontal bed layout for improved component fit and overall rigidity while minimizing footprint.
• Tool spindle driven by a servo spindle motor in direct-coupled form for a short transmission chain, high positional accuracy and rigidity.
• Worktable uses a high-precision helical gear pair for indexing with backlash elimination device, suitable for high-speed, high-precision cutting.
• Standard control: FANUC 0i-MF; optional: GSK25iG, Siemens 828D or other compatible systems.
• Optional automatic feeding mechanism and hopper available for unattended continuous processing.

Main technical specifications

• Product number: YS3610
• Machine type: Six-axis, four-linkage horizontal dry-cut gear hobbing machine
• Maximum workpiece diameter: 100 mm
• Maximum workpiece module: 3 mm
• Maximum toolhead rotation angle: ±60°
• Hob spindle max speed: 4000 r/min
• Worktable max speed: 400 r/min
• Maximum tool mounting size (diameter × length): φ80 × 110 mm
• Maximum axial travel of hob: 100 mm
• Distance range between hob center and worktable rotation center: 10–110 mm
• Distance from hob center to table surface: 150–500 mm
• Machining accuracy: up to GB/T10095.1-2008 Grade 6
• Standard configuration: FANUC 0i-MF CNC system (optional GSK25iG or Siemens 828D)
• Options: automatic feeding mechanism and hopper for continuous automation

Application range
Suitable for machining small-module, large-helix-angle gears; commonly used in motorcycle components, instruments and meters, toys, fishing gear and related fields.

Remarks
Machining accuracy meets GB/T10095.1-2008 Grade 6. Standard CNC system and transmission form are as stated; automatic feeding and hopper can be fitted as optional accessories.
