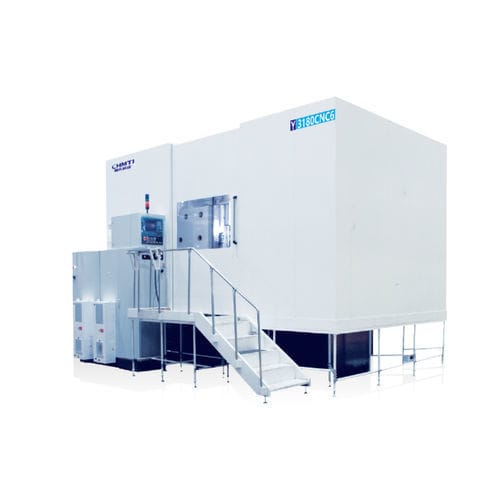

CNC gear-cutting machine Y3180/31125/31160/312006

vertical

Overview
The machine is intended primarily for gear machining in industries such as heavy-duty trucks, wind power, construction machinery, marine machinery, lifting equipment, mining machinery and power generation equipment. Machining accuracy can reach Grade 6 according to GB/T10095.1-2008.

Main performance and features:

• Six-axis, four-linkage large CNC hobbing machine.
• Vertical layout with fixed worktable and moving column for radial feed; full enclosure, oil mist collection and automatic chip removal; optional automatic workpiece clamping.
• Hob spindle driven by high-precision gear transmission; worktable driven by dual worm-and-wheel transmission.
• Radial and axial feed axes supported by rectangular steel-inlaid guideways and roller guide blocks, providing high accuracy and rigidity.
• Designed for efficient machining with high-speed coated hobs and carbide insert hobs.

Main technical specifications (listed by model):
Main technical specifications | Item | Parameter -> Y3180CNC6 | Y31125CNC6 | Y31160CNC6 | Y31200CNC6
1. Maximum workpiece diameter -> mm | 800 | 1250 | 1600 | 2000
2. Maximum module -> mm | 18 | 18 | 27 | 27
3. Maximum hob arbor swivel angle -> deg | ±45° | ±45° | ±45° | ±45°
4. Hob spindle maximum speed -> r/min | 275/350/500 | 275/350/500 | 220 | 220
5. Worktable maximum speed -> r/min | 24 | 24 | 8 | 8
6. Maximum tool mounting size (Ø×L) -> mm | Φ240×300 | Φ240×300 | Φ400×500 | Φ400×500
7. Hob maximum axial travel -> mm | 300 | 300 | 400 | 400
8. Distance from hob center to worktable rotation center -> mm | 75-560 | 100-780 | 150-1050 | 150-1200
9. Distance from hob center to worktable surface -> mm | 200-800 | 450-1050 | 470-1770 | 470-1770
10. Worktable load capacity -> T | 5 | 7 | 20 | 20
11. Main motor power -> kW | 33 | 33 | 43 | 43

Characteristics / technical specifications

• Applicable industries: gear machining for heavy-duty trucks, wind power, construction machinery, marine machinery, lifting, mining machinery and power generation equipment.
• Machining accuracy: up to Grade 6 per GB/T10095.1-2008.
• Axis count: six-axis, four-linkage.
• Machine layout: fixed worktable with moving column (vertical layout).
• Protection and chip handling: full enclosure, oil mist collection and automatic chip removal.
• Optional: automatic workpiece clamping device.
• Hob spindle drive: high-precision gear transmission.
• Worktable drive: dual worm-and-wheel transmission.
• Guideway support: radial/axial rectangular steel-inlaid guideways with roller guide blocks.
• Compatible tooling: high-speed coated hobs and carbide insert hobs for high-efficiency machining.
• Main models and parameters: see specification table (Y3180CNC6, Y31125CNC6, Y31160CNC6, Y31200CNC6).
