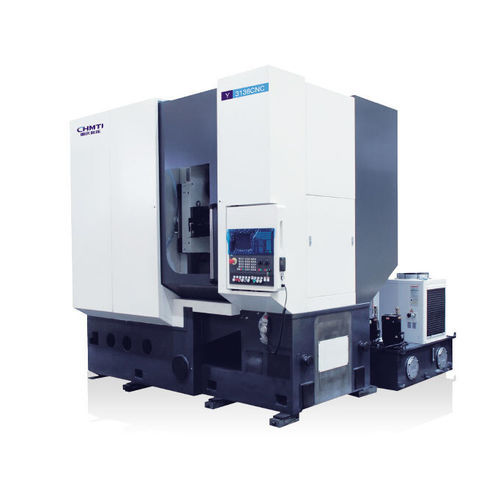

CNC gear-cutting machine Y3136/YD3136

Overview
Suitable for high-efficiency machining of large-module, low-tooth-count gears used in commercial vehicles, marine, wind power and construction machinery. Machine machining accuracy can reach GB/T10095.1-2008 Grade 6.

Main performance and features

• The machine is a six-axis, four-link CNC gear hobbing machine providing high rigidity, high efficiency and high precision.
• The Y axis is arranged beneath a large column with the Y-axis guide rail mounted on an inclined plane to increase tool head rigidity and use the machine's own weight to partially counter cutting reaction, improving rigidity and stability.
• The YD3136CNC workpiece spindle uses an integrated torque motor to ensure the rigidity and accuracy of the transmission system.
• The machine is equipped with fully enclosed external and internal protective covers and a reliable swarf and oil-mist rapid collection and removal system.
• The machine can be configured with Siemens or Fanuc CNC systems.

Main technical specifications
No. | Specification | Unit | Y3136CNC | YD3136CNC
1 | Maximum workpiece diameter | mm | 360 | 360
2 | Maximum workpiece module | mm | 16 | 16
3 | Maximum toolpost swivel angle | ° | ±45° | ±45°
4 | Hobbing cutter spindle max speed | r/min | 400 | 400
5 | Table max speed | r/min | 60 | 80
6 | Maximum cutter mounting size (diameter×length) | mm | Φ220×230 | Φ220×230
7 | Maximum axial travel of hobbing cutter | mm | 200 | 200
8 | Distance from hob center to table rotation center | mm | 70-320 | 70-320
9 | Distance from hob center to table surface | mm | 150-590 | 150-590

Features/Specifications

• Model: Y3136CNC / YD3136CNC
• Product name: High-efficiency heavy-cut CNC gear hobbing machine
• Category: Gear hobbing machine
• Processing application: Suitable for high-efficiency machining of large-module, low-tooth-count gears for commercial vehicles, ships, wind power and construction machinery industries
• Machining accuracy: Up to GB/T10095.1-2008 Grade 6
• Structure and control: Six-axis, four-linkage; configured with Siemens/Fanuc CNC system
• Spindle: YD3136CNC workpiece spindle with integrated torque motor
• Protection and chip removal: Fully enclosed external and internal protective covers with rapid swarf and oil-mist collection and removal system
