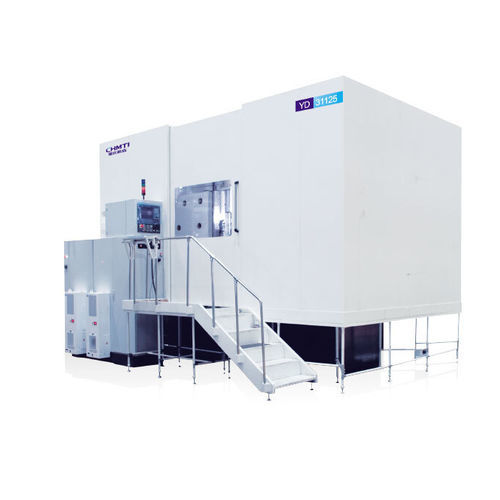

CNC gear-cutting machine YD3180/31125/31200/Y313206

vertical

Overview
Machine designed for gear processing in heavy-duty automotive, wind power, construction machinery, shipbuilding, lifting, mining machinery and power generation industries. Machining accuracy can reach GB/T10095.1-2008 standard grade 6–7.

Main performance and features

• Six-axis, four-linkage large CNC gear hobbing machine.
• Vertical layout with fixed worktable and moving column for radial feed; equipped with full enclosure, oil-mist collection, automatic chip removal; optional automatic workpiece clamping device.
• Hob spindle uses high-precision gear transmission; worktable driven by dual worm and wheel; radial and axial feed shafts supported by rectangular steel-insert guides and rolling guide blocks; high overall rigidity and precision.
• Suitable for high-efficiency processing with high-speed coated hobs and carbide insert hobs; for large-module gears the machine can use disc milling cutter and hob in a single setup to perform rough milling and finish hobbing in one clamping.
• Optional minimum quantity lubrication (MQL) cooling system to enable near-dry cutting.

Main technical specifications
Main models: YD3180 / YD31125 / YD31200 / Y31320CNC6

• 1. Maximum workpiece diameter (mm) — YD3180: 800; YD31125: 1250; YD31200: 2000; Y31320CNC6: 3200
• 2. Maximum module (mm) — YD3180: 27; YD31125: 30; YD31200: 32; Y31320CNC6: 32
• 3. Maximum hob head swivel angle (°) — All models: ±45°
• 4. Maximum hob spindle speed (r/min) — YD3180: 260; YD31125: 260; YD31200: 200; Y31320CNC6: 200
• 5. Maximum worktable speed (r/min) — YD3180: 24; YD31125: 16; YD31200: 4; Y31320CNC6: 4
• 6. Maximum mounted cutter size (diameter × length mm) — YD3180: Φ350×450; YD31125: Φ400×500; YD31200: Φ460×600; Y31320CNC6: Φ460×600
• 7. Maximum axial travel of hob (mm) — YD3180: 380; YD31125: 400; YD31200: 600; Y31320CNC6: 600
• 8. Distance from hob center to worktable rotation center (mm) — YD3180: 100–650; YD31125: 100–850; YD31200: 30–1300; Y31320CNC6: 280–2000
• 9. Distance from hob center to worktable surface (mm) — YD3180: 400–1400; YD31125: 400–1400; YD31200: 765–2165; Y31320CNC6: 765–2765
• 10. Worktable load capacity (T) — YD3180: 10; YD31125: 12; YD31200: 30; Y31320CNC6: 40
• 11. Main motor power (kW) — YD3180: 43; YD31125: 43; YD31200: 53; YD31320CNC6: 53

Features / Specifications (summary)

• Machine type: Six-axis, four-linkage large CNC gear hobbing machine
• Applicable industries: heavy-duty automotive, wind power, construction machinery, shipbuilding, lifting, mining machinery, power generation
• Machining accuracy: up to GB/T10095.1-2008 standard grade 6–7
• Tool compatibility: high-speed coated hobs, carbide insert hobs; supports disc milling cutter + hob single-clamp rough milling → finish hobbing
• Layout and equipment: vertical layout (fixed worktable, moving column), full enclosure, oil-mist collection, automatic chip removal, optional automatic workpiece clamping
• Cooling/lubrication: optional MQL cooling for near-dry cutting
• Main specifications (by model): see 'Main technical specifications' above
