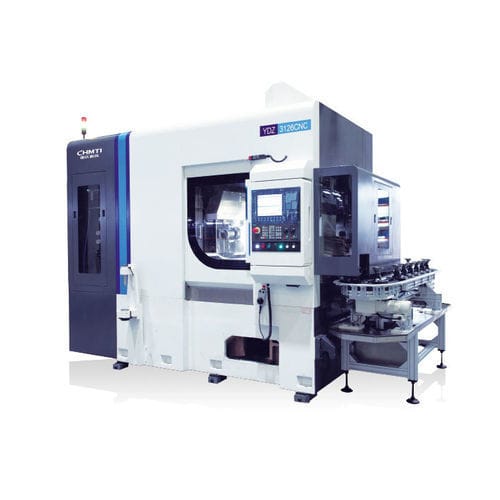

CNC gear-cutting machine YD31266/YDZ3126（CDR）

vertical

Overview
The machine is designed for high-volume gear hobbing for passenger cars, commercial vehicles, construction machinery and gear reducers. Machining accuracy can reach GB/T10095.1-2008 grade 6.

Main performance and features

• Six-/seven-/eleven-axis, four‑axis linked high-speed dry-cut gear hobbing machine suitable for efficient, dry machining.
• Vertical layout: column performs horizontal movement to achieve radial feed for high-efficiency hobbing operations.
• Full-sealed guards, fast chip evacuation and dry cooling system ensure good thermal stability and dimensional consistency.
• Tool and workpiece spindles with direct-drive transmission provide a short drive train and high transmission accuracy; high-rigidity rolling bearings enable high-speed, high-rigidity, heavy-load dry cutting for medium-module gears.
• Optional single-machine loading/unloading units and automatic transfer magazine for automation and flexible production.
• Optional extruding chamfering and deburring units enable multi-process integration; optional gear-matching device supports precision hobbing after heat treatment.
• Control system configurable with Siemens or FANUC.

Main technical parameters

• Maximum workpiece diameter (mm): 260
• Maximum workpiece module (mm): 6
• Tool head maximum swivel angle (°): ±45°
• Hob spindle maximum speed (r/min): 2500
• Table maximum speed (r/min): 250
• Maximum tool mounting size (diameter × length) (mm): Φ130×230
• Maximum axial travel of hob (mm): 200
• Distance from hob center to table rotation center (mm): 30–220
• Distance from hob center to table surface (mm): 135–485

Applications and technical characteristics

• Industries: passenger cars, commercial vehicles, construction machinery, gear reducers — suitable for large‑volume gear hobbing.
• Accuracy: up to GB/T10095.1-2008 grade 6.
• Axis configurations: 6/7/11 axes (four‑axis linkage).
• Drives: direct-drive spindles, short drive train, high-rigidity rolling bearings.
• Cooling and protection: dry cooling system, full-sealed guards, rapid chip evacuation.
• Automation options: loading/unloading units, automatic transfer magazine.
• Optional functions: extruding chamfer, deburring, gear-matching device for post-heat precision hobbing.
• Control: Siemens or FANUC available.
• See main technical parameters above for dimensional and speed data.
