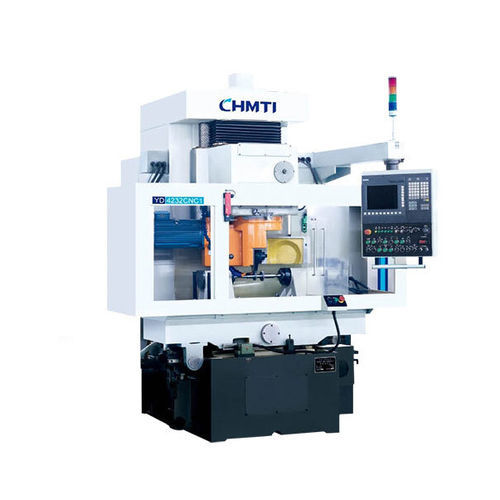

CNC gear-cutting machine YD42322

horizontalfor bevel gear

Overview
The machine is mainly used for gear processing in the automotive, shipbuilding and construction machinery industries. Processing accuracy can reach GB/T10095.1-2008 standard grades 5-6.

Main performance and features

• Two-axis CNC gear shaving machine with servo-controlled cutter radial feed (Z axis) and table axial feed (X axis), permitting axial and radial shaving.
• Vertical layout with high-rigidity integrated column and bed structure.
• X and Y axes driven by digital servo motors with ball-screw transmission.
• Equipped with a human-machine interface (HMI).
• Profiling mechanism allows shaving of crowned gears and small taper gears.

Applicable processing
Suitable for axial or radial shaving of external spur and helical cylindrical gears, splines and stepped gears.

Main technical specifications
1 | Maximum workpiece diameter | 320 mm
2 | Maximum module | axial shaving 8, radial shaving 6
3 | Cutter speed range | 50-400 r/min
4 | Table feed speed | 1-500 mm/min
5 | Radial feed speed | 0.2-500 mm/min
6 | Distance range from cutter rotation center to centers | 115/125~280 mm

Technical characteristics / specifications

• Model (code): YD4232CNC2
• Product name: CNC gear shaving machine
• Maximum workpiece diameter: 320 mm
• Maximum module: axial shaving 8, radial shaving 6
• Cutter speed range: 50-400 r/min
• Table feed speed: 1-500 mm/min
• Radial feed speed: 0.2-500 mm/min
• Distance range from cutter rotation center to centers: 115/125~280 mm
• Processing accuracy: meets GB/T10095.1-2008 grades 5-6
