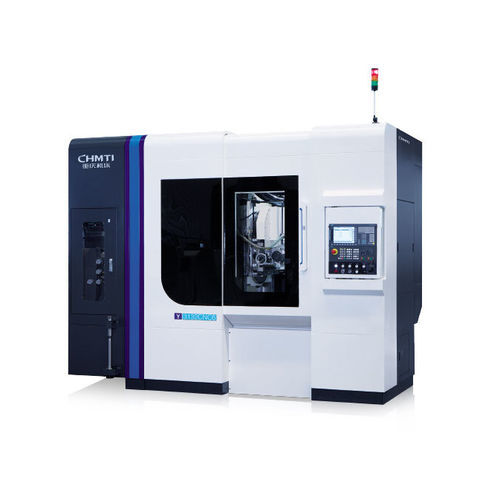

CNC gear-cutting machine Y31326~7

vertical

Product overview
Machine designed for high-volume, efficient hobbing of gears for passenger cars, commercial vehicles, construction machinery, marine engines, agricultural machinery and gearboxes. Finishing accuracy can meet GB/T10095.1-2008 grade 6.

Main performance and features

• Six-axis, four-link CNC high-efficiency hobbing machine with wet machining.
• Vertical layout with large flat cast-iron guideways, precision scraped for good contact strength and motion accuracy; compact structure and high static/dynamic rigidity. Suited for multi-head hobs and heavy feed cutting to significantly increase cutting efficiency, especially for medium and large module gears.
• Equipped with full enclosure, oil-mist collection, automatic chip removal and automatic workpiece clamping; optional automatic loading/unloading unit and workpiece magazine for integration into automated gear production lines.
• Human–machine interface (HMI), parametric programming and system self-diagnostic functions.
• Configurable with FANUC or SIEMENS control systems.

Main technical specifications

• Max workpiece diameter: 320 mm
• Max workpiece module: 10 mm
• Tool head max swivel angle: ±45°
• Hob spindle max speed: 700 r/min
• Table max speed: 60 r/min
• Max tool mounting size (Ø×L): Φ170×230 mm
• Hob axial travel: 200 mm
• Distance between hob center and table rotation center: 40–310 mm
• Distance from hob center to table surface: 210–570 mm

Characteristics / specifications / technology

• Product name: CNC high-efficiency gear hobbing machine
• Applicable industries: passenger cars, commercial vehicles, construction machinery, marine machinery, agricultural machinery, gearboxes
• Machining mode: wet
• Axes: six-axis, four-link
• Guideways: large flat cast-iron guideways, precision scraped
• Enclosure & protection: full enclosure, oil-mist collection, automatic chip removal
• Automation: optional automatic loading/unloading unit and workpiece magazine; supports automated production line integration
• Control system: configurable FANUC or SIEMENS
• Processing accuracy: up to GB/T10095.1-2008 grade 6
• Max workpiece diameter: 320 mm
• Max workpiece module: 10 mm
• Hob spindle max speed: 700 r/min
• Table max speed: 60 r/min
• Max tool mounting size: Φ170×230 mm
• Hob axial travel: 200 mm
• Hob center to table rotation center distance: 40–310 mm
• Hob center to table surface distance: 210–570 mm
