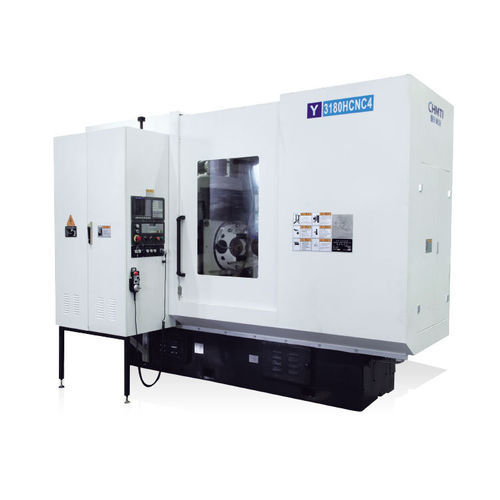

CNC gear-cutting machine Y3180H4/5

horizontalfor bevel gear

Overview
Machine suitable for gear machining in passenger cars, commercial vehicles, construction machinery, marine equipment, agricultural machinery and lifting equipment. Processing accuracy can reach GB/T10095.1-2008 Grade 7. Product code: Y3180HCNC4/5

Main performance and features:

• Four-/five-axis, four-linkage wet-cut CNC gear hobbing machine.
• Standard configuration includes domestic CNC system with HMI and parametric programming; supports single setting for multiple, repeated circular cycles.
• Equipped with fully enclosed guard; optional oil mist collector, automatic chip removal, automatic workpiece clamping available.

Workpieces processed:

• Capable of machining cylindrical spur gears, helical gears, small bevel gears, crowned gears, sprockets, splines, worm wheels, etc.

Main technical specifications:
Index | Main technical specification | Unit | Y3180HCNC4 | Y3180HCNC5
1 | Max workpiece diameter | mm | 800 | 800
2 | Max module | mm | 10 | 10
3 | Spindle max speed | r/min | 350 | 450
4 | Table max speed | r/min | 20 | 20
5 | Max tool size (Ø×L) | mm | Φ180×180 | Φ180×200
6 | Max manual tool traverse | mm | 50 | 200 (automatic)

Features / technical specifications

• Machine type: four-/five-axis, four-linkage wet-cut CNC gear hobbing machine
• CNC system: domestic CNC system supporting HMI and parametric programming
• Protection and options: fully enclosed guard; optional oil mist collector, automatic chip conveyor, automatic workpiece clamping
• Processing accuracy: up to GB/T10095.1-2008 Grade 7
• Applicable industries: passenger cars, commercial vehicles, construction machinery, marine equipment, agricultural machinery, lifting equipment gear machining
• Representative models: Y3180HCNC4 / Y3180HCNC5 (see table above)
