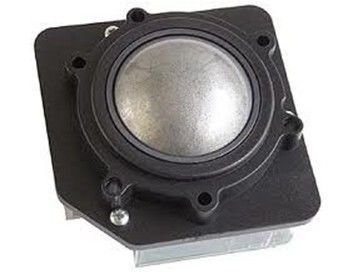

Optical trackball L50 Series Trackerball™

panel-mountruggedPS2

Description
Utilizing infra-red optical tracking technology, the L50 Series Trackball is a contact-less, high-specification control device engineered for demanding cursor control applications. The infra-red optical tracking engine provides accurate cursor motion across speeds while using solid-state sensing (no moving sensing parts), making the unit suitable for OEM keyboards and consoles with back-of-panel mounting.

Features

• Solid-state sensing technology – infra-red optical tracking engine
• Sealing up to IP68
• Outputs: USB & PS/2 (auto-select)
• Smooth operation in rugged environments
• Various top plate configurations providing sealing and tracking force options
• Custom connector options
• Self draining and back flushing features (optional)
• Various ball colours
• VX3™ – integrated zoom feature for scroll wheel functionality

Typical Applications

• Medical systems
• Marine systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions

Product configuration (available options / examples shown on page)

• Sealing Rating: IP68 (option shown)
• Output Protocol: Quadrature; USB/PS/2 & SUN (auto-select option)
• Integrated Switches: No switches (option shown)
• Mounting Style: Mount to back of panel (option shown)
• Top & Body Style: L50 No Seal, Non-removable ball; L50 Scraper Seal, Non-removable ball; L50 No Seal, Non-removable ball, Drain Hole; L50 Scraper Seal, Non-removable ball, Drain Hole
• Ball Colour options: Black; Metallic Red (Ruby); Metallic Yellow; Metallic Grey; Metallic White

Technical specifications

• Technology: Infra-red optical tracking, solid state sensing (no moving sensing parts)
• Contact-less trackball with a single moving ball
• Sealing: up to IP68 (series dependent)
• Electrical outputs: USB & PS/2 (auto-select), Quadrature and SUN options
• Mounting: designed for back-of-panel mounting in OEM keyboards and consoles
• Durability: washable, decontaminable and sterilizable design for extreme conditions
• Optional features: self draining and back flushing
• Top plate options: multiple configurations to provide different sealing and tracking force characteristics
• Connector: custom connector options available
• Additional functionality: VX3™ integrated zoom (scroll wheel functionality)
• Available ball colours for user customization
