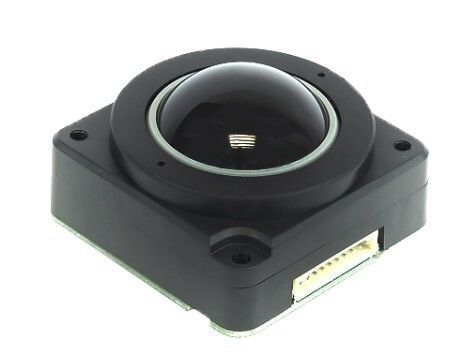

Panel-mount trackball P38 Ultra Compact

ruggedUSBstainless steel

Product Description
The P38 Ultra Compact series are professional trackballs engineered for back-of-panel mounting in OEM keyboards and control consoles used in demanding environments. High-grade stainless steel shafts and bearings provide precise pointer control. Optional floating/PTFE ball seal technology enables configurable ball tracking force and improved ingress protection. Multiple top-ring and ball colour options, outputs and connector variants allow OEM integration.

Features

• Small footprint for compact installations
• Outputs: USB & PS/2 (auto-select)
• Reliable operation in rugged environments
• High-grade stainless steel shafts and bearings
• Various configurations and custom connector options
• Backlit ball options
• External switch connections (USB & PS/2 only)

Typical Applications

• Control systems
• Medical systems
• Navigation systems
• Compact keyboards
• Industrial consoles
• OEM custom solutions

Product Configuration / Ordering
Ordering code template: P38 - variant fields specify sealing rating, output protocol, integrated switches, mounting style, top & body style, ball colour and suffix.

• Sealing Rating (example default): IP50
• Output Protocol (example default): Combined Interface – PS/2 & USB
• Integrated Switches (example default): No switches
• Mounting Style (example default): Back-of-panel mount
• Top & Body Style options: P38UC Black, Non-sealed; P38UC Black, PTFE Ball Seal; P38UC RAL9002, Non-sealed; P38UC RAL9002, PTFE Ball Seal
• Ball Colour options: Black; Yellow; White (RAL 9002); Metallic Grey
• Suffix: Standard (No Suffix)

Technical Specifications

• Series: P38 Ultra Compact
• Connector/Outputs: USB and PS/2 (auto-select)
• Mounting: Designed for back-of-panel mounting (suitable for OEM keyboards and consoles)
• Materials: High-grade stainless steel shafts and bearings
• Sealing: Optional floating/PTFE ball seal technology; example sealing rating IP50
• Ball tracking force: Configurable via trackball variant selection
• Top ring: Removable top ring colour options
• Ball colour: Black, Yellow, White (RAL 9002), Metallic Grey
• Switches: Option for integrated switches; external switch connections supported (USB & PS/2 only)
• Environment: Optimised for smooth operation in rugged/demanding environments
• Customisation: Multiple configurations and custom connector options available
• Typical applications: Control systems, medical, navigation, compact keyboards, industrial consoles, OEM solutions
