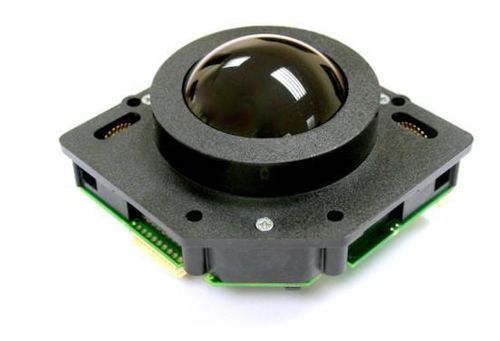

Mechanical trackball P60 Standard

panel-mountruggedUSB

Product overview
The P60 Series mechanical trackballs are rugged, high-exposure pointing devices designed for demanding industrial and OEM applications. They incorporate the proven technology used in the Cursor Controls Ltd trackball range to provide precise and reliable pointer control. Units are intended for back-of-panel mounting in keyboards and consoles.

Features

• Sealing options up to IP51 (BS EN 60529)
• Output: USB & PS/2 (auto-select) or SUN Systems
• High mass ball for precise control
• Smooth operation in rugged environments
• High grade stainless steel shafts and bearings
• Various top plate configurations providing sealing and tracking force options
• Custom connector options
• Custom ball colours

Typical Applications

• Control systems
• Navigation systems
• Sound and lighting desks
• Industrial consoles
• OEM custom solutions available

Product configuration (available options)

• Sealing Rating: IP40 or IP51
• Output Protocol: Combined Interface PS/2 & USB, SUN Systems, or USB/PS/2 & SUN
• Integrated Switches: No switches (option for other switch counts available)
• Mounting Style: Mount to back of panel (other mounting options available)
• Top & Body Style: P60 Non-sealed (series-specific configuration options available)
• Ball Colour: Black, Yellow, White (RAL 9002), Red, Blue (additional colours may be available)
• Suffix: Standard (No Suffix)

Technical specifications

• Series: P60
• Type: Mechanical trackball, high ball exposure
• Ingress protection: options up to IP51 (BS EN 60529)
• Interfaces: USB & PS/2 (auto-select) or SUN Systems; combined and multi-interface options available
• Ball: High mass ball for precise control; multiple colour options
• Mechanics: High grade stainless steel shafts and bearings for durability and precision
• Mounting: Designed for back of panel mounting (suitable for OEM keyboards and consoles)
• Environment: Rugged operation suitable for industrial and demanding applications
• Customization: Top plate configurations, connector options, and custom ball colours available
• Documentation: Product datasheets and quick guides available
