Panel-mount trackball P38 Compact Backlit

waterproofIP65stainless steel

Product overview

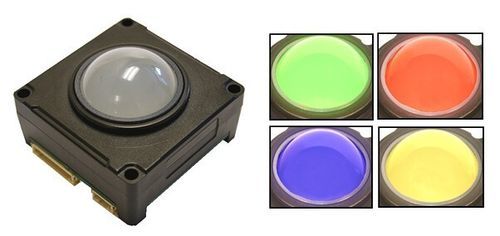

The P38 Compact Series are high specification, professional trackballs designed for demanding environments. The device is available with backlit translucent ball colours (blue, green, red, white and yellow). High-grade stainless steel shafts and bearings provide precise pointer control while patented floating seal technology limits ingress of liquids and particulates. Multiple top-plate and chassis configurations offer options for sealing, backlighting, bezel diameter and installation. The unit is designed for back-of-panel mounting as part of OEM keyboards and consoles in low-light environments.

Features

• Sealing options up to IP65 (BS EN 60529)
• Outputs: USB & PS/2 (auto-select) and TTL Quadrature
• Backlit ball — various translucent colours available
• Smooth operation in rugged environments
• Stainless steel shaft and bearings
• Multiple top plate configurations for sealing and tracking force options
• Custom connector options
• Optional anti-vandal kit
• External switch connections (USB & PS/2 only)

Typical Applications

• Control systems
• Medical systems
• Navigation systems
• Compact keyboards
• Industrial consoles
• OEM custom solutions

Product configuration / Ordering code
P38 - X X 0 2 X X

• Sealing Rating: IP40, IP51, IP65
• Output Protocol: Quadrature; Combined Interface - PS/2 & USB
• Integrated Switches: No switches (default) or selectable switch configurations
• Mounting Style: Mount to back of panel (default) or other mounting options
• Top & Body Style: P38C Sealed; P38C Non-Sealed
• Ball Colour: Backlit Blue (translucent Ball); Backlit Red (translucent Ball); Backlit White (translucent Ball); Backlit Yellow (translucent Ball); additional colours may be available
• Suffix: Standard (No Suffix) (default)

Technical specifications

• Series / Model: P38 Compact Backlit
• Sealing: up to IP65 (BS EN 60529)
• Outputs: USB & PS/2 (auto-select) and TTL Quadrature
• Ball: backlit translucent options (blue, red, white, yellow; additional colours may be available)
• Shaft and bearings: high-grade stainless steel
• Ingress protection enhanced by patented floating seal technology
• Mounting: designed for back-of-panel mounting in OEM keyboards and consoles
• Top plate / chassis: multiple configurations for sealing, backlighting and bezel diameter options
• Optional accessories: custom connector options; optional anti-vandal kit; external switch connections (USB & PS/2 only)
• Typical use cases: control, medical, navigation, compact keyboards, industrial consoles, OEM custom solutions
