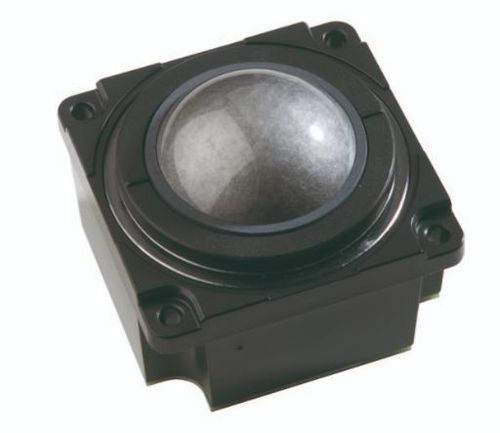

Optical trackball X50

panel-mount2 inch (50 mm)IP68

Product description
50 mm optical trackball X50 featuring a Generation II infrared optical tracking engine, IP68 sealing and selectable Combined USB/PS2 or TTL Quadrature outputs. Configurable top-plate, mounting and connector options for industrial and OEM applications.

Features

• Solid state sensing technology – infrared optical tracking engine (Generation II)
• Sealing up to IP68
• Output: Combo (USB & PS2 auto-select) or TTL Quadrature
• Smooth operation in rugged environments
• Various top plate configurations
• Custom connector options available
• Various ball colours available
• VX3™ – integrated zoom feature for scroll wheel functionality
• External Switch Connections (USB/PS2 only)

Typical Applications

• Medical systems
• Marine systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions available

Product configuration
Ordering code template: X50-7 X 0 2 X X - G

• Sealing Rating: IP68 (option shown/selected)
• Output Protocol: Quadrature; Combined Interface - PS/2 & USB
• Integrated Switches: No switches (option shown/selected)
• Mounting Style: Mount to back of panel (option shown/selected)
• Top & Body Style: X50 Damper Ring, Removable Ball Retention Ring with Ribs; X50 PTFE Ball Seal, Removable Ball Retention Ring with Ribs
• Ball Colour: Black; Metallic Grey (additional colours may be available)
• Suffix: Optical Tracking Engine (Gen II) (option shown/selected)

Available documents (titles)

• DS50092 - X50 USB - Quick Guide (PDF)
• DS50092 - X50 USB - Technical Datasheet
• DS50093 - X50 Quadrature - Quick Guide (PDF)
• DS50093 - X50 Quadrature - Technical Datasheet
• AN0063 - X-Range Trackball Installation Guide
• AN0016 - Maintenance Instructions

Technical specifications

• Model: X50
• Ball diameter: 50 mm
• Sensing technology: Infrared optical tracking engine (Generation II)
• Sealing: up to IP68
• Output options: Combined Interface (PS/2 & USB auto-select) or TTL Quadrature
• VX3™ integrated zoom feature for scroll wheel functionality
• External switch connections supported (USB/PS2 only)
• Top & body styles: Damper Ring with removable ball retention ring with ribs; PTFE Ball Seal with removable ball retention ring with ribs
• Mounting style: mount to back of panel (option available)
• Ball colours shown: Black; Metallic Grey (additional colours may be available)
• Default/selected configuration examples shown on page: IP68 sealing, Quadrature or Combined USB/PS2 outputs, No switches, Mount to back of panel, Optical Tracking Engine (Gen II) suffix
• Ordering code template shown on page: X50-7 X 0 2 X X - G
