Laser trackball X19

panel-mountPS2waterproof

Overview

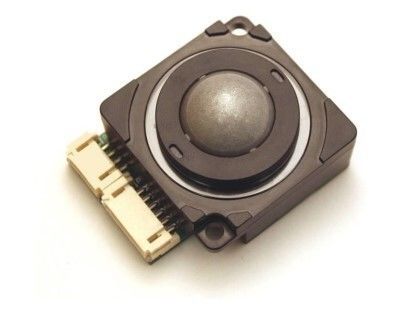

The X19 Series Trackball is a contact-less laser trackball designed for back-of-panel integration in OEM keyboards and consoles. Using a Generation II laser tracking engine, it delivers precise cursor control across a wide range of speeds while eliminating moving sensing parts. The design includes a removable top ring for cleaning, decontamination and sterilisation, enabling reliable operation in demanding environments. Available with multiple electrical outputs, tracking force options and sealing up to IP68.

Features

• Contact-less solid state sensing — Generation II laser tracking engine
• Sealing up to IP68 for hostile or wet environments
• Output protocols: USB & PS/2 (auto-select); Quadrature option available
• VX3™ integrated zoom function for scroll wheel behaviour
• Removable top ring for ease of cleaning and sterilisation
• Various top plate and ball configurations; ball colours: Black, Metallic Grey
• Custom connector and external switch options (external switches supported on USB/PS2 only)
• Designed for back-of-panel mounting in OEM applications

Typical Applications

• Medical systems and devices
• Marine and shipboard consoles
• Industrial control and operator consoles
• Custom OEM keyboards and human‑machine interfaces
• Environments requiring frequent decontamination or washdown

Product configuration / Ordering options

• Ordering code prefix: X19
• Sealing rating: IP68 (option)
• Output protocol: Combined interface - PS/2 & USB (auto-select) or Quadrature
• Integrated switches: Configurable (optionally omitted)
• Mounting style: Back-of-panel mount
• Top & body style: X19 Damper Ring or X19 Rubber Ball Seal
• Ball colour: Black, Metallic Grey
• Suffix: K - Optical Tracking Engine

Available documentation

• DS19005 - X19 USB - Technical Datasheet
• DS19005 - X19 USB - Quick Guide
• AN0063 - X-RANGE TRACKBALL INSTALLATION GUIDE
• AN0016 - Maintenance Instructions

Technical specifications

• Laser tracking engine (Generation II) — contact-less solid state sensing
• Sealing: up to IP68
• Electrical outputs: USB & PS/2 (auto-select); Quadrature option available
• VX3™ integrated zoom/scroll functionality
• Removable top ring for cleaning, decontamination and sterilisation
• Back-of-panel mounting design for OEM keyboards and consoles
• Custom connector options and various top plate configurations
• External switch connections supported (USB/PS2 only)
