Mechanical trackball P50panel-mountplasticUSB
Add to favorites
Compare this product
Characteristics
- Technology
- mechanical
- Mounting
- panel-mount
- Other characteristics
- plastic, USB, PS2, rugged, stainless steel, IP65
- Applications
- medical, for Radar or Control Platform, industrial
Description
Product overview

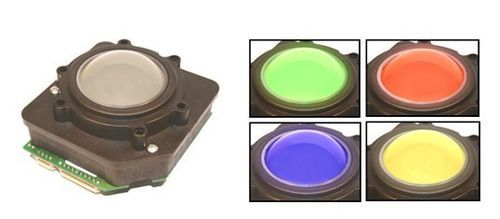

The P50 RGB mechanical trackball module provides independent control of integrated RGB LEDs for configurable ball illumination colour and intensity. It is available with USB and PS/2 electrical outputs and sealing options up to IP65.
Key features
Typical applications
Product configuration (ordering options)
Technical specifications
The P50 RGB mechanical trackball module provides independent control of integrated RGB LEDs for configurable ball illumination colour and intensity. It is available with USB and PS/2 electrical outputs and sealing options up to IP65.
Key features
- Sealing up to IP65 (BS EN 60529)
- Outputs: USB & PS/2 (combined interface option)
- RGB LED illuminated ball with independent colour and intensity control
- Smooth operation suitable for rugged environments
- Multiple top-plate configurations for sealing and tracking-force adjustment
- Stainless steel shaft and bearings
- Custom connector options
- VX3™ — integrated zoom/scroll-wheel functionality
Typical applications
- Control systems
- Medical systems
- Marine systems
- Navigation systems
- Sound and lighting desks
- Industrial consoles
- OEM custom solutions
Product configuration (ordering options)
- Ordering code prefix: P50
- Sealing rating options: IP40, IP51, IP65
- Output protocol: Combined interface — PS/2 & USB (option)
- Integrated switches: No switches (option available)
- Mounting style: Back-panel mounting for OEM keyboards and consoles
- Top & body style: P50 Sealed or P50 Non-Sealed
- Ball colour: TRANSLUCENT (standard); additional colours may be available
Technical specifications
- Model: P50
- Product type: Mechanical trackball module with backlit RGB ball
- Ball illumination: Integrated RGB LEDs with independent colour and intensity control
- Sealing: Up to IP65 (BS EN 60529)
- Electrical outputs: USB and PS/2 interfaces (combined interface option)
- Materials: Stainless steel shaft and bearings; durable plastic components
- Sealing/tracking: Floating sealing technology; various top-plate configurations
- Special features: VX3™ integrated zoom (scroll-wheel) feature; custom connector options
- Mounting: Designed for back-panel mounting in OEM keyboards and consoles
- Typical environments: Industrial, medical, marine, navigation, sound/lighting, control consoles
- Documentation: DS50027 - P50 Backlit RGB - Quick Guide; DS50027 - P50 Backlit RGB - Technical Datasheet
