Optical trackball E38

desktop38 mmPS2

Product description

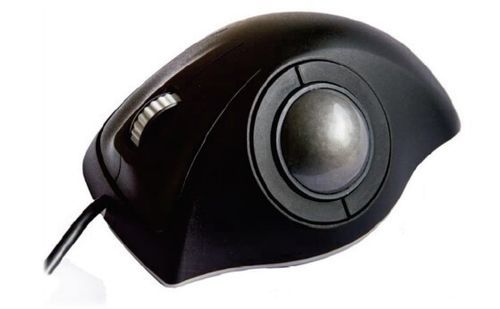

The E38 Series desktop trackball module combines IP65 environmental sealing with patented infra-red optical navigation and an integrated IP65 hall-effect scroll wheel to deliver a waterproof, solid-state desktop pointing solution. The unit provides left, middle and right switch functionality, USB & PS/2 auto-select output and a wired USB cable for reliable operation. Supplied in a black fine-textured housing with an aluminium base plate, the E38 is designed for freestanding desktop installation and is suitable for washdown, decontamination and sterilisation in demanding environments.

Features

• Environmental sealing to IP65
• Infra-red optical navigation technology
• Integrated IP65 hall-effect scroll wheel technology
• Integrated left, middle and right switch functionality
• 38 mm ball for precise cursor control
• USB & PS/2 outputs (auto-select)
• Wired USB cable for high reliability (no batteries)
• Smooth operation in rugged environments
• Various custom options available

Typical Applications

• Medical systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions

Product configuration / Ordering information

• Ordering code prefix: E38
• Example default configuration shown: E38-7 6 A 3 X X (variant placeholders)
• Sealing rating (default): IP65
• Output protocol (default): Combined Interface - PS/2 & USB (auto-select)
• Integrated switches (default): 2 switches + scroll wheel
• Mounting style (default): Desktop
• Top & body style options: E38 Damper Ring; E38 PTFE Ball Seal
• Ball colour options: Metallic Grey; Metallic Red (Ruby)
• Suffix: Standard (No Suffix)

Technical specifications

• Environmental sealing: IP65
• Navigation technology: Infra-red optical
• Scroll wheel: Integrated IP65 hall-effect
• Switches: Left, middle and right
• Ball diameter: 38 mm
• Electrical outputs: USB & PS/2 (auto-select)
• Housing: Black, fine-textured
• Base plate: Aluminium
• Mounting: Freestanding desktop
• Design: Solid-state for wash down, decontamination and sterilisation
• Cable: Wired USB (no batteries required)
• Suitable for: Rugged/demanding environments
• Customisation: Various electrical outputs, ball tracking force options, colours and backlighting features available
