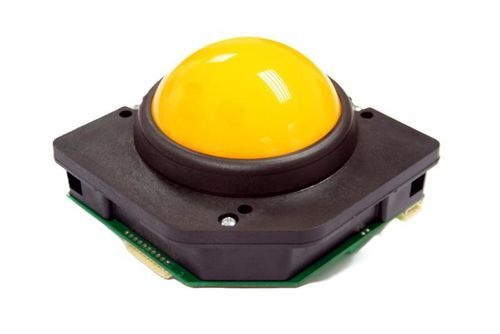

Mechanical trackball P75 Standard

panel-mountstainless steelrugged

Product Overview
The P75 Standard is a high-mass mechanical trackball designed for demanding industrial and OEM console applications. Engineered for back-of-panel mounting, it delivers precise pointer control through a high-exposure ball and high-grade stainless steel shafts and bearings. The unit is suited to harsh environments and integration into custom keyboards and control panels.

Features

• Sealing options up to IP51 (BS EN 60529)
• Output protocols: USB, PS/2 (auto-select) or SUN Systems
• High-mass ball for stable, accurate control
• Smooth, reliable operation in rugged environments
• High-grade stainless steel shafts and bearings
• Multiple top-plate configurations for sealing and tracking-force options
• Custom connector and ball colour options
• External switch connections available (USB/PS/2 variants)

Typical Applications

• Control systems
• Navigation systems
• Sound and lighting desks
• Industrial consoles
• OEM custom solutions

Product Configuration / Ordering
Ordering code: P75 - X X 0 2 4 X (series/options placeholders represent sealing, output, switches, mounting, top/body style, ball colour and suffix choices). Specify required sealing, output protocol and switch configuration when ordering.

Technical specifications

• Series / Model: P75 Standard
• Mechanical type: High-mass mechanical trackball
• Mounting: Back-of-panel mounting for OEM keyboards and consoles
• Sealing ratings available: IP40 or IP51 (BS EN 60529)
• Output protocol options: Combined PS/2 & USB (auto-select), SUN Systems, or combined USB/PS/2 & SUN
• Integrated switches: Default no switches; alternative switch configurations on request
• Top & body style: P75 Non-sealed (other series-specific configurations available)
• Ball colours available: Black, Yellow (additional colours may be available)
• Materials & construction: High ball exposure; high-grade stainless steel shafts and bearings
• External connections: External switch connections available for USB/PS/2 variants
