Mechanical trackball P50 seriespanel-mountprecisionIP65
Add to favorites
Compare this product
Characteristics
- Technology
- mechanical
- Mounting
- panel-mount
- Other characteristics
- precision, IP65, rugged, PS2, stainless steel, plastic, USB, waterproof
- Applications
- medical, industrial
Description
Overview

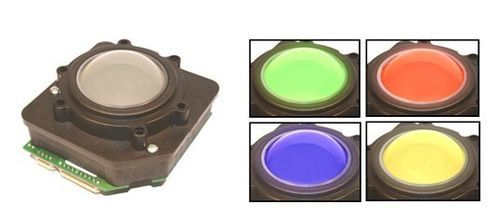

The P50 Series backlit mechanical trackballs are high specification modules available with a variety of backlit ball colours, electrical outputs, and sealing options up to IP65. This unit delivers smooth, precise cursor control for control panels and OEM keyboards in low-light environments. Constructed from high-grade stainless steel and durable plastics and using floating sealing technology, the P50 is designed for long-term reliable operation in industrial, medical and marine environments.
Features
Typical Applications
Product configuration & options
Technical specifications
The P50 Series backlit mechanical trackballs are high specification modules available with a variety of backlit ball colours, electrical outputs, and sealing options up to IP65. This unit delivers smooth, precise cursor control for control panels and OEM keyboards in low-light environments. Constructed from high-grade stainless steel and durable plastics and using floating sealing technology, the P50 is designed for long-term reliable operation in industrial, medical and marine environments.
Features
- Sealing up to IP65 (BS EN 60529)
- Outputs: PS/2, USB
- Backlit ball – various colours
- Smooth operation in rugged environments
- Various top plate configurations providing sealing and tracking force options
- High grade stainless steel shaft and bearings
- Custom connector options
- VX3™ – integrated zoom feature for scroll wheel functionality
Typical Applications
- Control systems
- Medical systems
- Marine systems
- Navigation systems
- Sound and lighting desks
- Industrial consoles
- OEM custom solutions available
Product configuration & options
- Sealing Rating: IP40, IP51, IP65
- Output Protocol: Combined Interface - PS/2 & USB (default)
- Integrated Switches: No switches (option for switches available)
- Mounting Style: Mount to back of panel
- Top & Body Style: P50 Sealed, P50 Non-Sealed
- Ball Colour (backlit, translucent): Backlit Blue, Backlit Red, Backlit White, Backlit Yellow
Technical specifications
- Series: P50 series
- Sealing: up to IP65 (BS EN 60529)
- Electrical outputs: PS/2, USB (combined interface option)
- Backlit ball: multiple translucent colours (Blue, Red, White, Yellow)
- Materials: high grade stainless steel shafts and bearings; plastic components
- Mounting: designed for back-of-panel mounting (OEM keyboards and consoles)
- Switches: configurable; default shown as no integrated switches
- Top/body options: sealed and non-sealed variants
- Special features: floating sealing technology; VX3™ integrated zoom for scroll wheel functionality
- Typical uses: industrial, medical, marine, navigation, sound/lighting desks, OEM custom solutions
- Documentation available: DS50023 - P50 Backlit - Quick Guide; DS50023 - P50 Backlit - Technical Datasheet
