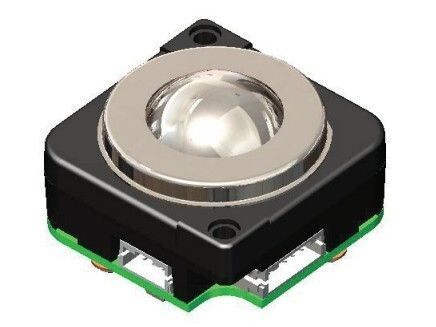

Panel-mount trackball P25IP65vandal-proofrugged
Add to favorites
Compare this product
Characteristics
- Mounting
- panel-mount
- Other characteristics
- IP65, vandal-proof, rugged, USB, precision, PS2, stainless steel
- Applications
- industrial, medical
Description
Overview The P25 Compact Series are rugged professional trackballs designed for space-constrained industrial and OEM applications. They incorporate proven P38 technology in a smaller footprint. The ball and bezel are manufactured from high-quality stainless steel to protect against vandalism and harsh environments. High-grade stainless steel shafts and bearings provide precise pointer control while the patented floating seal reduces ingress of liquids and particulates. The P25 is intended for back-of-panel mounting in OEM keyboards and operator consoles.
Features
Typical Applications
Product configuration / Ordering code
Technical specifications
Features
- Sealing to IP65 (BS EN 60529)
- Output options: USB & PS/2, SUN Systems or TTL Quadrature
- Stainless steel ball and bezel for vandal and environment resistance
- Smooth, reliable operation in rugged conditions
- High-grade stainless steel shafts and bearings
- Custom connector options available
- Optional anti‑vandal kit
- External switch connections (USB & PS/2 only)
Typical Applications
- Industrial control systems
- Medical equipment
- Navigation and avionics consoles
- Compact and rugged keyboards
- Operator and industrial consoles
- Laptops and handheld devices
- OEM custom integration
Product configuration / Ordering code
- Ordering code prefix: P25
- Sealing Rating: IP40 or IP65
- Output Protocol: Quadrature; Combined Interface - PS/2 & USB; SUN Systems
- Integrated Switches: No switches (option shown)
- Mounting Style: Back-of-panel mount
- Top & Body Style: P25C non-removable ball, stainless steel trim
- Ball Colour: Stainless steel (SS 440)
- Suffix: Standard (No Suffix)
Technical specifications
- Model family: P25 Compact Series
- Sealing: up to IP65 (IEC/BS EN 60529)
- Ball & trim material: stainless steel (ball option SS 440)
- Shafts & bearings: high-grade stainless steel for precise control
- Seal technology: patented floating seal to limit ingress of liquids and particulates
- Mounting: designed for back-of-panel mounting in OEM keyboards and consoles
- Available outputs: USB, PS/2, SUN Systems, TTL Quadrature
- External switch connections available for USB & PS/2 versions
- Optional anti‑vandal kit available
- Custom connector options available
