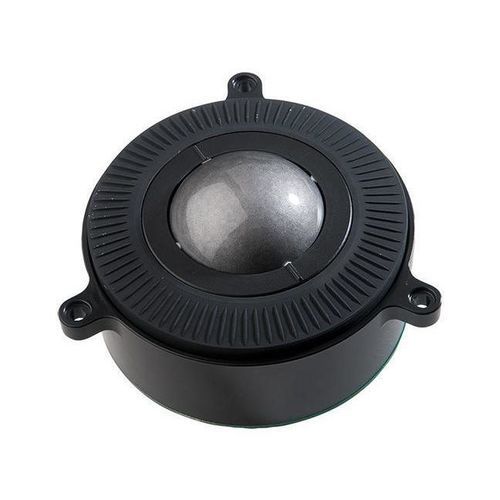

Optical trackball Z50 Trackball

panel-mountUSBprecision

Overview
Utilizing infrared optical tracking technology (Generation II), the Z50 Series contact-less optical trackball provides accurate X and Y cursor control and a surrounding Z-axis control wheel for scroll/zoom functions. The solid-state optical tracking engine delivers precise motion at all speeds with virtually any ball, reducing moving parts to the ball only. The design includes a removable top ring for cleaning, decontamination, sterilisation and maintenance. Units are intended for back-of-panel mounting in OEM keyboards and consoles and are configurable for outputs, tracking force and sealing to suit demanding environments.

Features

• Solid-state infrared optical tracking engine (Generation II)
• Z-axis control wheel for scroll/zoom
• Outputs: USB & PS/2 (auto-select); other outputs configurable
• Smooth operation in rugged environments
• Multiple top-plate and sealing configurations
• Custom connector options available
• Various ball colour options

Typical Applications

• Sound and lighting control desks
• Video editing consoles
• Medical systems and equipment
• Marine control systems
• Custom keyboard and HMI applications
• Industrial consoles and operator panels
• OEM custom solutions

Product configuration (ordering options shown on page)

• Base ordering code: Z50 with configurable suffix/options
• Sealing rating options (example shown: IP40)
• Output protocol options: Quadrature; Combined interface – PS/2 & USB
• Integrated switches options: configurable (e.g. no switches)
• Mounting style: back-of-panel mount (example shown)
• Top & body style options: Damper Ring; Smooth Z-Axis Ring; Rubber Ball Seal; PTFE Ball Seal
• Ball colour options: Black; Metallic Grey (additional colours may be available)
• Suffix options: Optical Tracking Engine (Gen II)

Technical specifications

• Product type: Contact-less optical trackball (Z50 Series)
• Tracking technology: Infrared optical tracking engine (Generation II)
• Axes: X and Y cursor movement plus surrounding Z-axis control wheel
• Outputs: USB & PS/2 (auto-select); additional electrical outputs available by configuration
• Switches: Configurable (e.g. no switches option)
• Mounting: Designed for back-of-panel mounting in OEM keyboards and consoles
• Sealing rating: Configurable (example option IP40)
• Top/body configurations: Multiple top plate and sealing options (Damper Ring, Rubber Ball Seal, PTFE Ball Seal)
• Ball colours: Multiple options (Black, Metallic Grey shown; others may be available)
• Removable top ring for cleaning, decontamination, sterilisation and maintenance
• Operation: Smooth performance in rugged/harsh environments
• Customisation: Custom connector options and OEM custom solutions available
• Applications: Sound & lighting, video editing, medical, marine, industrial and custom keyboard applications
