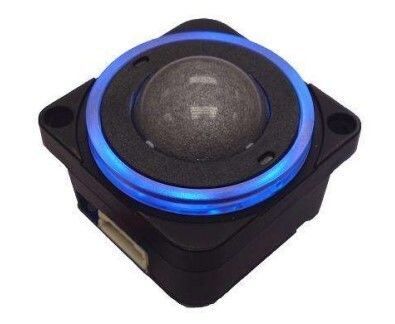

Laser trackball X25 HALO

panel-mount1 inch (25 mm)IP68

Overview
Utilizing the latest and most advanced laser tracking technology, the X25 HALO Series laser Trackerball™ is an extremely high specification, contact-less device, ideal for use in low level light environments where accurate cursor control is critical. The trackball incorporates an illuminated HALO ring around the ball to enable the user to locate the trackball in low light environments and is available in a wide range of colours. The HALO feature can also be used to complement other backlit features incorporated within a user interface panel. The laser tracking engine provides accurate cursor motion at all speeds, combining the benefits of solid state sensing (no moving parts except the ball) with the aesthetics, functionality and performance associated with the Cursor Controls product range. The design incorporates a removable top ring as standard to allow for easy cleaning, decontamination, sterilisation and maintenance. The X25 HALO Series trackballs are available with a variety of electrical outputs, tracking force options, and sealing capabilities up to IP68. The trackball has been designed to be back of panel mounted as part of OEM keyboards and consoles.

Features

• Solid state sensing technology – laser tracking engine (Generation II)
• HALO light feature – various colours available
• Sealing up to IP68
• Outputs: USB & PS2 (auto-select)
• Smooth operation in rugged environments
• Various top plate configurations
• Custom connector options available
• Various ball colours available
• VX3™ – integrated zoom feature for scroll wheel functionality
• External Switch Connections (USB/PS2 only)

Typical Applications

• Medical systems
• Sound and lighting consoles
• Video editing consoles
• Marine systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions

Product configuration (examples of available options)

• Ordering code root: X25 (configurable suffixes and options)
• Sealing rating: IP68 (option available)
• Output protocol: Combined Interface - PS/2 & USB or Quadrature
• Integrated switches: No switches (option to include switches)
• Mounting style: Mount to back of panel
• Top & body style options: X25 Damper Ring; X25 Rubber Ball Seal
• Ball colour options: Black; Metallic Grey (additional colours available)
• Halo light suffix options: Blue, Green, Red, White, Yellow

Caractéristiques / spécifications techniques

• Product family / series: X25 HALO series
• Tracking technology: Laser tracking engine (solid state, Generation II)
• Contactless operation: Yes (no moving internal sensing parts)
• Illumination: HALO ring around ball, multiple colours
• Sealing: Up to IP68 (series dependent)
• Electrical outputs: USB & PS/2 (auto-select) and Quadrature (options)
• Mounting: Back-of-panel mounting for OEM keyboard/console integration
• Removable top ring for cleaning, decontamination and sterilisation
• Top plate and ball configuration: Multiple top plate configurations and ball colours
• Connector options: Custom connector options available
• Additional features: VX3™ integrated zoom for scroll-wheel functionality; external switch connections (USB/PS2 only)
