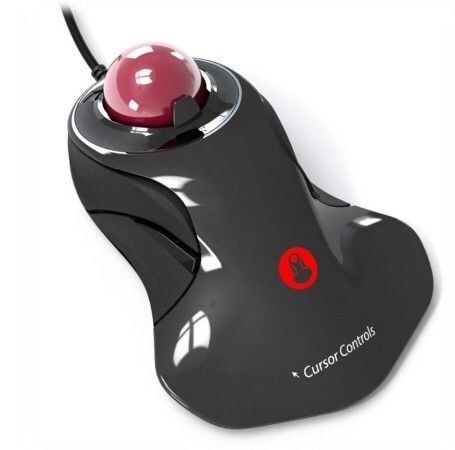

Optical trackball R38 series

desktop38 mmUSB

Product description
The R38 desktop trackball module is an ambidextrous, high‑specification unit that combines patented infra‑red optical trackball technology with a capacitive Z‑axis scrolling ring to provide both vertical and horizontal scrolling. The module integrates left, middle and right buttons plus forward and backward switches, and a resolution button offering five selectable configurations with high/low toggle modes. A dedicated control switches handedness between left‑ and right‑hand operation. The solid‑state top prevents dust ingress and simplifies cleaning of the trackball area when the ball is removed. Designed as a freestanding desktop device, the R38 optimises desk space compared with a conventional mouse.

Features

• Infra‑red optical navigation technology
• Integrated left, middle, right, forward and backward switch functionality
• 38 mm ball for precise cursor control
• Capacitive Z‑axis scrolling ring for vertical and horizontal scrolling
• Two Z‑axis scrolling modes (linear and continuous), selectable
• Five selectable resolution configurations with high/low toggle modes
• Twelve RGB colour modes including OFF, selectable
• Switchable left/right handedness via dedicated button
• USB output (wired cable for power and data)
• Solid‑state design for dust prevention and easy cleaning

Typical Applications

• Gaming
• Professional workstations and control rooms

Technical specifications

• Series / Model: R38 series
• Ball diameter: 38 mm
• Navigation sensor: Infra‑red optical
• Scrolling: Capacitive Z‑axis ring (vertical and horizontal)
• Z‑axis modes: Linear and continuous (selectable)
• Resolution: 5 selectable configurations with high/low toggle modes
• Switches: Integrated left, middle, right, forward and backward switches (six‑switch configuration available)
• RGB: 12 colour modes including OFF
• Handedness: Switchable left/right via dedicated button
• Output / Interface: USB (wired)
• Design: Freestanding desktop device with solid‑state trackball area
• Mounting style (option): Desktop
• Sealing rating (option): IP40 (other IP levels configurable)
• Top & body example: R38 Metallic Grey housing, black buttons and base
• Ball colour examples: Metallic Red (Ruby), Metallic Black
• Ordering code prefix: R38
