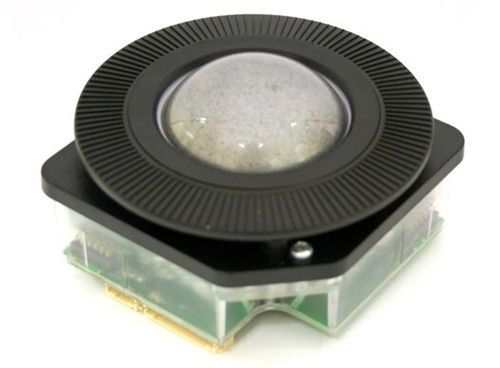

Optical trackball L50 Removable

panel-mountUSBPS2

Product overview
The L50 Removable is a contact‑less infra‑red optical trackball designed for back‑of‑panel mounting in demanding environments. It uses a solid‑state infra‑red optical tracking engine (no moving sensing parts) combined with a removable top plate and ball to permit washdown, decontamination and sterilisation processes. Multiple electrical output options and configurable sealing/tracking force variants make the unit suitable for industrial, marine, medical and OEM console applications.

Features

• Solid‑state infra‑red optical tracking engine (contact‑less sensing)
• Sealing options up to IP68
• Electrical outputs: USB & PS/2 (auto‑select), Quadrature, Combined Interface, SUN systems (various outputs available)
• Removable top plate and ball for cleaning and maintenance
• Design suited to regular cleaning and servicing in aggressive environments
• Variable friction control for different sealing and tracking force requirements
• Custom connector options available
• Optional self‑draining and back‑flush features
• Multiple ball colours available
• VX3™ integrated zoom for scroll/zoom functionality

Typical applications

• Medical systems and equipment
• Marine and shipboard control systems
• Custom and industrial keyboard applications
• Industrial and operator consoles
• OEM custom solutions requiring washdown/sterilisation capability

Technical specifications

• Model / series: L50 Removable (L50 Series)
• Tracking technology: Infra‑red optical tracking; solid‑state sensing (no moving sensing parts except the ball)
• Sealing: up to IP68 (IP65 and other options available)
• Outputs / interfaces: USB & PS/2 (auto‑select), Quadrature, Combined Interface (PS/2 & USB), SUN systems (multiple electrical outputs available)
• Mounting style: back‑of‑panel mounting (mount to back of panel)
• Top & body: removable top plate and ball; variable friction seal options; variants with drain hole and back‑flush/self‑draining options
• Integrated switches: configurable (option for no switches or variants with switches)
• Ball colours: Black, Metallic Grey, Metallic Red (Ruby), Metallic Yellow, Metallic White (other colours may be available)
• Additional features: custom connector options; VX3™ integrated zoom for scroll functionality; suitable for washdown, decontamination and sterilisation in extreme conditions
• Environments: designed for demanding/rugged environments requiring regular cleaning and servicing (medical, marine, industrial, OEM consoles)
