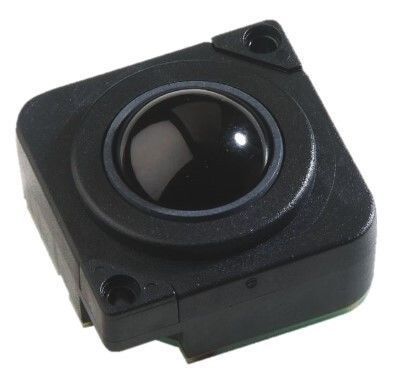

Mechanical trackball P25 Compact Series

panel-mountvandal-proofrugged

Product overview
The P25 Compact Series are professional-grade trackballs engineered for demanding, space-constrained industrial and OEM applications. The series uses proven P38 technology in a smaller form factor to provide precise pointer control and configurable sealing and interface options. Designed for back-of-panel mounting within keyboards and control consoles.

Features

• Sealing options up to IP65 (BS EN 60529)
• Outputs: PS/2, USB, SUN or TTL Quadrature
• Steel-core ball for precise control
• Smooth, reliable operation in industrial environments
• High-grade stainless steel shafts and bearings
• Multiple top-plate configurations to adjust sealing and tracking force
• Custom connector options
• Optional anti-vandal kit
• External switch connections (USB & PS/2 models)

Typical applications

• Control systems and operator consoles
• Medical and diagnostic equipment
• Navigation and avionics consoles
• Compact and rugged keyboards
• Industrial consoles and HMIs
• Laptops, handhelds and portable terminals
• OEM custom integration projects

Product configuration (ordering options)
Ordering code format: P25 - [Sealing Rating] [Output Protocol] [Integrated Switches] [Mounting Style] [Top & Body Style] [Ball Colour] [Suffix]
Sealing Rating | IP40, IP65
Output Protocol | Combined Interface - PS/2 & USB; SUN Systems; TTL Quadrature
Integrated Switches | No switches (default); options for integrated physical switches
Mounting Style | Mount to back of panel (default)
Top & Body Style | P25C Sealed; P25C Non-Sealed
Ball Colour | Black (default); additional colours may be available
Suffix | Standard (No Suffix)

Technical specifications

• Series: P25 Compact Series
• Ingress protection: up to IP65 (BS EN 60529), depending on configuration
• Outputs/Interfaces: PS/2, USB, SUN, TTL Quadrature (model/configuration dependent)
• Ball: steel-core ball for precise pointer control
• Shafts & bearings: high-grade stainless steel for durability and precision
• Sealing technology: patented floating seal to limit ingress of liquids and particulates
• Mounting: designed for back-of-panel mounting in OEM keyboards and consoles
• Switch options: external switch connections available (USB & PS/2); integrated switch quantity configurable
• Top plate: multiple configurations to tune sealing and tracking force
• Optional features: anti-vandal kit, custom connector options, OEM custom solutions
