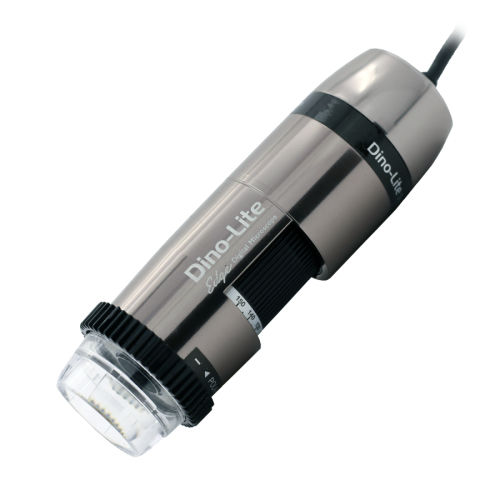

Opto-digital microscope AM4013MZT4

measuringpolarizationLED illumination

The AM4013MZT4 with a high magnification of 400~470x reveals even the smallest details on all kinds of objects. The built-in, switchable polarizer makes the AM4013MZT4 the right choice for working with high glare materials such as jewelry, plastics and metals. The aluminum housing offers enhanced protection and durability and has the best look and feel. Specification Lighting Light/ LED type - White Number of LEDs - 8 LED on/off switchable: - Yes Infrared filter - IR cut-filter >650 nm Diffuser available - No Emission filter - No Polarizer - Yes, linear Optics Macro zoom - No Working distance - Standard Lens type - Glass with anti-reflection coating Sensor Sensor type - CMOS Resolution - 1.3 Megapixel (1280x1024) Maximum frame rate - 30 fps Compatibility Interface - USB 2.0 Operating system - Windows 7,8,10 & 11, MacOS 10.9 and up Software - DinoCapture 2.0 (Windows), DinoXcope (Mac OS) Supported image formats (Windows) - BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX Supported video formats (Windows) - WMV, FLV, SWF Supported image formats (MacOS) - JPEG, PNG Supported video formats (MacOS) - MOV Imaging standards - DirectShow, UVC Wifi - Wireless-ready, requires the WF-10 WiFi streamer (optional) Housing Housing material - Metal housing Magnification lock - No Cable length - 1.8m Features Special feature - No Measurement - Yes Calibration - Yes Microtouch sensor - Yes ESD safe - Yes Information Package contents - Microscope, carry pouch, calibration target, ZT-Z-CC1 cap closure, user manual
