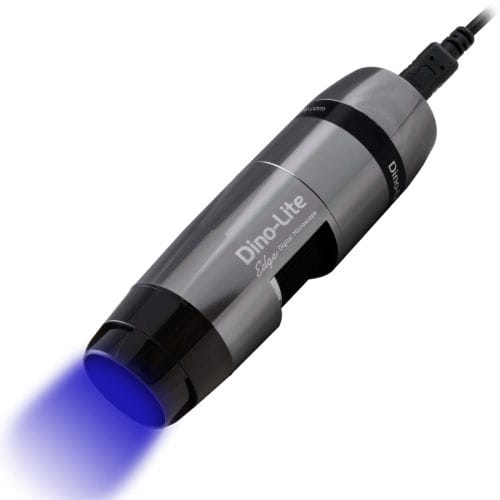

Digital microscope AM4517MT-BFCW

laboratoryfluorescenceautomatic

Detect a variety of fluorescence emissions with the AM4517MT-BFCW high-sensitivity 20x ~ 220x digital microscope. Equipped with 435 nm excitation lights and a 475 nm ~ 650 nm emission filter, this model captures clear images of samples labeled with fluorescent probes such as eCFP, Alexa Fluor 430, and Fura Red. This model features AMR to ease measurements. Designed for precision fluorescence imaging, this system features a high-sensitivity sensor for detecting low fluorescence emissions, wide-ranging fluorescence detection with 435 nm excitation lights, and a 475–650 nm emission filter. A switchable white LED aids in target focusing, while Automatic Magnification Readout (AMR) ensures accurate measurements. Housed in a durable anodized aluminum alloy, it offers EMI shielding and resistance to impacts and abrasions. The main features of the AM4517MT-BFCW are: 1.3 Megapixel High Sensitivity Sensor Wide-Ranging Fluorescence Detection Switchable White Light Automatic Magnification Readout (AMR) Robust Metal Housing Specification Lighting Light/ LED type - Excitation (λpeak: 435 nm), 7 LEDs White Light, 1 LED Light/ LED type - 2 years European warranty Number of LEDs - 8 Sensor Resolution - 1.3 Megapixel (1280x960) Maximum frame rate - 30 fps at 1.3 MP, MJPEG 30 fps at VGA, MJPEG Compatibility Interface - USB 2.0 Operating system - Windows 10/11 macOS 10.14 or later Supported image formats (Windows) - DinoCapture 2.0: BMP, PNG, TIF, JPG DinoCapture 3.0: BMP, PNG, TIF, JPG Supported video formats (Windows) - DinoCapture 2.0: WMV, FLV, SWF DinoCapture 3.0: WMV, MP4 Supported image formats (MacOS) - DinoXcope: PNG, JPEG Supported video formats (MacOS) - DinoXcope: MOV
